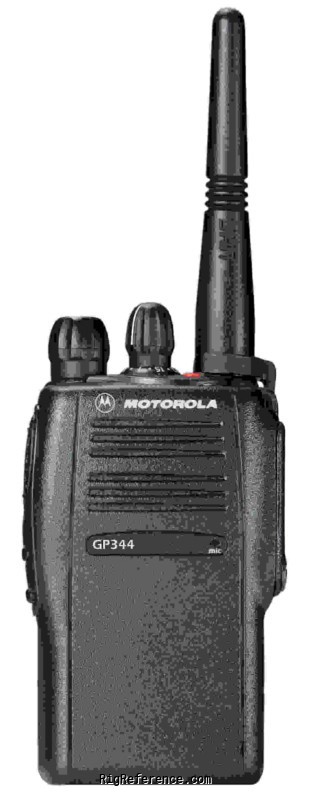

The Motorola GP-344 is a handheld VHF/UHF transceiver. It covers 136-174 MHz and 403-470 MHz for both receive and transmit. The RF output is 1-5 W max. It features CTCSS/PL or Select 5/5-tone CCIR, VOX, and Lone Worker Radio functionality. Dimensions are 102 × 56 × 31 mm and weighs 250 gr with Li-ion battery.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 16 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 MHz
403-470 MHz - Modulations
- FM
- Sensitivity
- ?
- Selectivity
- 12.5 / 20 / 25 kHz
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 136-174 MHz
403-470 MHz - Modulations
- FM
- RF-output
- 1-5 W max
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Li-Ion battery
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 56 × 102 × 31 mm (2.20 × 4.02 × 1.22 in)
- Weight
- 250 gr (8.8 oz) with Li-ion battery
- Form factor
- Handheld
- Manufactured
- Between 200x and 200x
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- CTCSS/PL or Select 5/5-tone CCIR. VOX
Lone Worker Radio enters emergency mode if user does not respond. - Accessories
- -
- RigReference ID
- 5221
- MPN
- MOTOROLA-GP-000344
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
