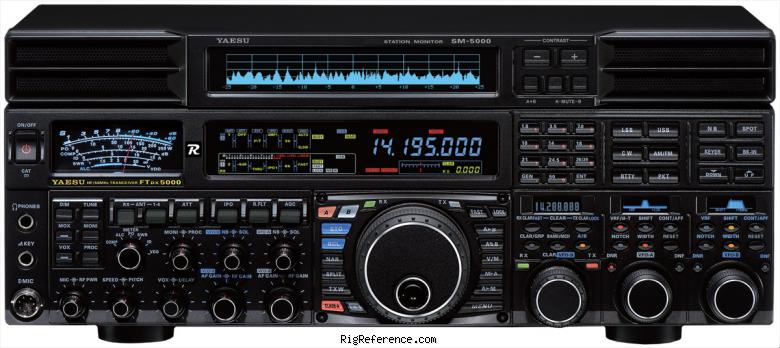

The Yaesu FTdx5000 was announced in November 2009. The transceiver features an impressive 112 dB dynamic range and an IP3 (3rd Order Intercept Point) of +40 dBm (CW, 500 Hz). Newly designed roofing filters are selectable between 300 Hz, 600 Hz, 3 kHz, 6 kHz and 15 kHz. DSP features are powered by two 32-bit processors from Texas Instruments (TMS320C6727B) both running at 300 MHz. Each VFO has its own DSP processor. RF output comes from a pair of VRF150 FETS yielding 200 W.
Besides the main display there is a large multi-functional analogue meter (same as in the FTdx-9000) and three sub-displays to indicate sub-frequency, graphical wave and menu functions.
The Station Monitor SM-5000 is included with the FTdx5000D.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- ±0.5 p.p.m. TCXO
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.03-60 MHz
- Modulations
- AM FM CW USB LSB RTTY
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- 15 / 6 / 3 kHz, 600 Hz (300 Hz optional)
- Receiver system
- Triple conversion Super-heterodyne + DSP
- IF-frequencies
- 1st: Main: 9 MHz, Sub: 40.455 MHz
2nd: Main: 30 kHz (SSB/CW), 24 kHz (FM/AM), Sub: 455 kHz
3rd: Main: 30 kHz (SSB/CW), 24 kHz (FM/AM) - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 MHz
- Modulations
- AM FM CW USB LSB RTTY
- RF-output
- 200 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 462 × 135 × 389 mm (18.19 × 5.31 × 15.31 in) (w/o knobs)
- Weight
- 21.00 kg (46.3 lbs) (SM-5000: 3 kg / 6.6 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2009 and 201x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DSP
Dual-RX
RS-232 computer interface (no USB!) - Accessories
- -
- RigReference ID
- 5013
- MPN
- YAESU-FTDX005000D
Manuals, diagrams and brochures
- Yaesu FTdx5000 Operation manual - part 1 PDF - Unknown size, submitted by RigReference
- Yaesu FTdx5000 Operation manual - part 2 PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTdx5000D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FTdx5000D in Good condition is around:
- USD 4,323
These estimates are based on the following prices:
