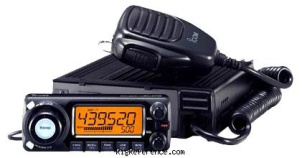

ICOM IC-208H

Mobile VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find ICOM IC-208H rigs and spare parts on eBay Find the ICOM IC-208H on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
118-174 / 440-450 MHz
TX-range
144-148 / 440-450 MHz (Asia)
HAM bands
?
Stability
+/- 10 p.p.m.
Tuning steps
5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 and 200 kHz
Filters
?

Receiver

Modulations
AM   FM
Sensitivity
Less than 0.18 µV for 12dB SINAD (144/430 bands only)
Selectivity
12 kHz (-6 dB), 30 kHz (-60 dB)
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 46.05 MHz
2nd: 450 kHz
Image rejection
Better than 60 dB
Audio output
2 W at 10%

Transmitter

Modulations
FM
RF-Output
High: 50 / 55 W, Medium: 15 / 15 W, Low: 5 / 5 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8 V DC +/-15%
Current drain RX
0.8 A
TX
12 A max

Physical

Dimensions (w×h×d)
141 × 40 × 185 mm (5.55 × 1.57 × 7.28 in) dimensions control head: 111×40×39 mm
Weight
1.20 kg (2.6 lbs)
Form factor
Mobile
Manufactured
Between 2003 and 200x
MPN
ICOM-IC-000208H

Other features

Memories
500 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS & DTMF. Multi color display.
