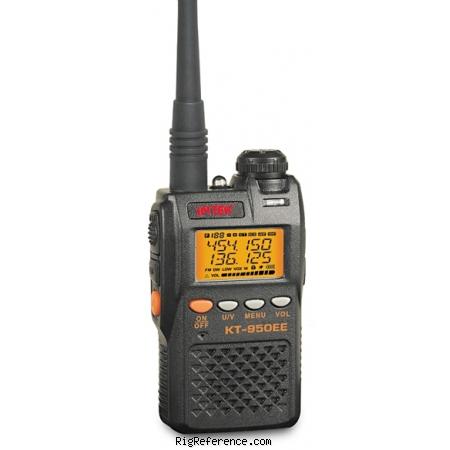

The Intek KT-950EE is a handheld transceiver. The frequency range for reception is 87-108 / 139-174 MHz and 400-470 MHz. The frequency range for transmission is 139-174 MHz and 400-470 MHz. Frequency stability is ± 2.5 p.p.m. Tuning steps are selectable in increments of 5 / 6.25 / 10 / 12.5 / 20 / 25 / 100 kHz. RF output power is 2 W. The radio features 99 memory channels organized into 1 memory bank. It is powered by a 3.7 V DC Li-ion battery. Dimensions are 81 × 47 × 23 mm. Features include PC programmability (USB), DTMF, CTCSS / DCS. Current drain during reception is 75-400 mA.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 5 / 6.25 / 10 / 12.5 / 20 / 25 / 100 kHz
- Memories
- 99 channels in 1 bank(s)
Receiver
- RX-range
- 87-108 / 139-174 MHz
400-470 MHz - Modulations
- AM FM W-FM
- Sensitivity
- 0.2 µV @ 12 dB SINAD
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 139-174 MHz
400-470 MHz - Modulations
- FM
- RF-output
- 2 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 3.7 V DC Li-ion
- Current drain RX
- 75-400 mA
- TX
- ?
Physical
- Dimensions (w×h×d)
- 47 × 81 × 23 mm (1.85 × 3.19 × 0.91 in)
- Weight
- 130 gr (4.6 oz)
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- PC-programmable (USB)
DTMF
CTCSS / DCS - Accessories
- -
- RigReference ID
- 5988
- MPN
- INTEK-KT-000950EE
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Intek KT-950EE. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Intek KT-950EE in Good condition is around:
- EUR 49
These estimates are based on the following prices:
