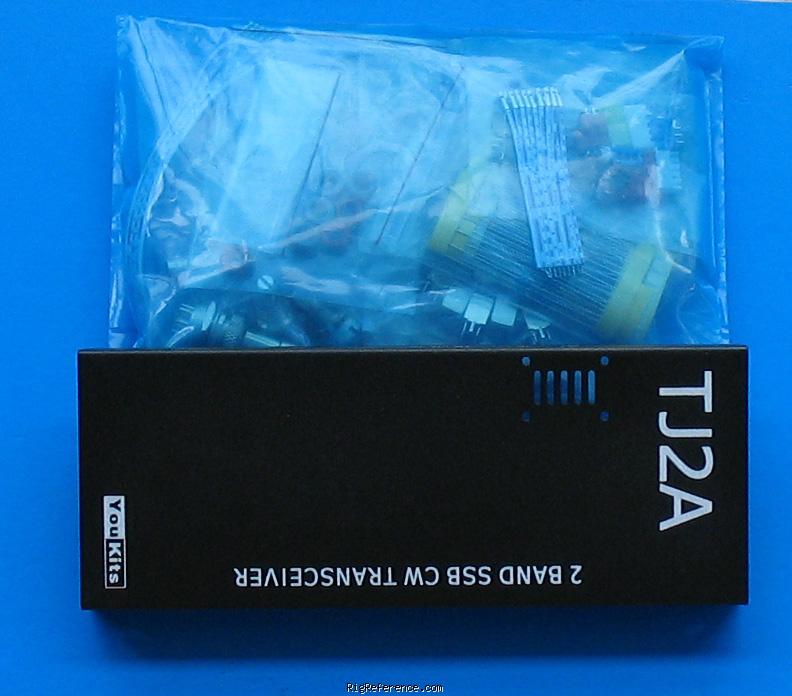

The frequency range of the Youkits TJ2A can be changed to any 2 bands between 160 and 10 meters by changing BPF components.

General characteristics

HAM bands
60m  40m  20m  17m (WARC)  15m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
7.0-7.085 / 14.15-14.33 MHz
Modulations
CW   USB   LSB
Sensitivity
0.3 µV
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
9 MHz
Image rejection
?
Audio output
?

Transmitter

TX-range
7.0-7.085 / 14.15-14.33 MHz
Modulations
USB   LSB
RF-output
3.5-4 W

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
10.8-13.8 V DC
Current drain RX
70-80 mA
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Handheld
Manufactured
Between 201x and 201x

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6034
MPN
YOUKITS-TJ000002A

Manuals, diagrams and brochures

Youkits TJ2A Schematic PDF - 64.0 kB, submitted by RigReference
Youkits TJ2A Construction Notes V1.4 (Draft) PDF - 315.1 kB, submitted by RigReference
Youkits T2JA FAQ PDF - 61.2 kB, submitted by RigReference
Youkits TJ2A Appendix 2 PDF - 35.7 kB, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
More audio! 3 years ago by ve3cmq

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Youkits TJ2A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Youkits TJ2A is around:

  • EUR 107.00
  • USD 61.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2018 USD 75.00 Used / Mint ve3cmq
2017 EUR 150.00 New / Mint marcnl
