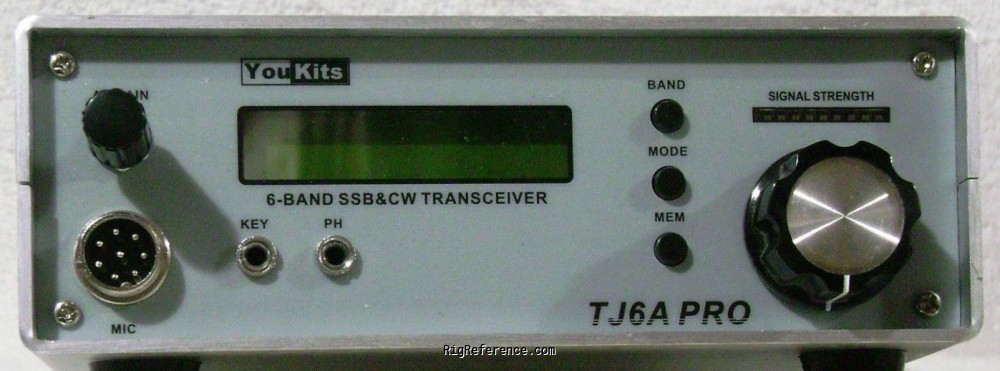

The Youkits TJ6A Pro is a 6 band SSB/CW transceiver. The frequency range for reception is 2.5-4.1 / 5-8 / 10-15.1 / 18-22 MHz and the frequency range for transmission is 1.5-4 / 7-7.5 / 10.1-10.15 / 14-14.5 / 18.068-18.168 / 21-21.5 MHz. Frequency stability is 0.6 µV (10 dB S/N). The receiver system is single conversion superheterodyne with an IF frequency of 9 MHz. RF output is 5-8 W. The transceiver features a signal strength meter, 1 memory bank with 8 channels and requires 13.8 V DC power. Current drain in receive mode is 180 mA.
General characteristics
- HAM bands
- 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m
- Frequency stability
- 0.6 µV (10 dB S/N)
- Tuning steps
- ?
- Memories
- 8 channels in 1 bank(s)
Receiver
- RX-range
- 2.5-4.1 / 5-8 / 10-15.1 / 18-22 MHz
- Modulations
- CW USB LSB
- Sensitivity
- 0.3 µV
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Single conversion superheterodyne
- IF-frequencies
- 9 MHz
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 1.5-4 / 7-7.5 / 10.1-10.15 / 14-14.5 / 18.068-18.168 / 21-21.5 MHz
- Modulations
- CW USB LSB
- RF-output
- 5-8 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- 180 mA
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Kit
- Manufactured
- Between 20xx and 20xx in Canada
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Signal strength meter
- Accessories
- -
- RigReference ID
- 6237
- MPN
- YOUKITS-TJ000006A-PRO
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Youkits TJ6A Pro. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Youkits TJ6A Pro is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
