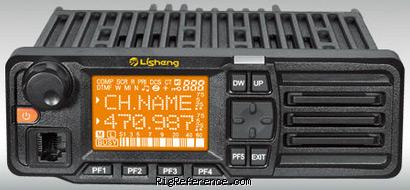

The Lisheng UT858 is a VHF/UHF transceiver. It covers 136-174 / 350-390 / 400-470MHz / 450-520 MHz for both receive and transmit. Frequency stability is ± 2.5 p.p.m. with tuning steps of 25 / 12.5 / 10 / 6.25 / 5 kHz. RF output is selectable at 10/25/50 W. Audio output is 500mW. The UT858 features 1 memory bank with 199 channels and a detachable front panel. It requires 13.8 V DC ±15% (11.7-15.8V) power. Dimensions are 56 × 185 × 170 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 25 / 12.5 / 10 / 6.25 / 5 kHz
- Memories
- 199 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 / 350-390 / 400-470MHz / 450-520 MHz
- Modulations
- FM
- Sensitivity
- ≤0.20 µV / ≤0.25 µV
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 500mW
Transmitter
- TX-range
- 136-174 / 350-390 / 400-470MHz / 450-520 MHz
- Modulations
- FM
- RF-output
- 10/25/50 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ±15% (11.7-15.8V)
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 185 × 56 × 170 mm (7.28 × 2.20 × 6.69 in)
- Weight
- 1.16 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2014 and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Detachable front panel
- Accessories
- -
- RigReference ID
- 6070
- MPN
- LISHENG-UT000858
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Lisheng UT858. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Lisheng UT858 is around:
- USD 219 ~ USD 406
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
