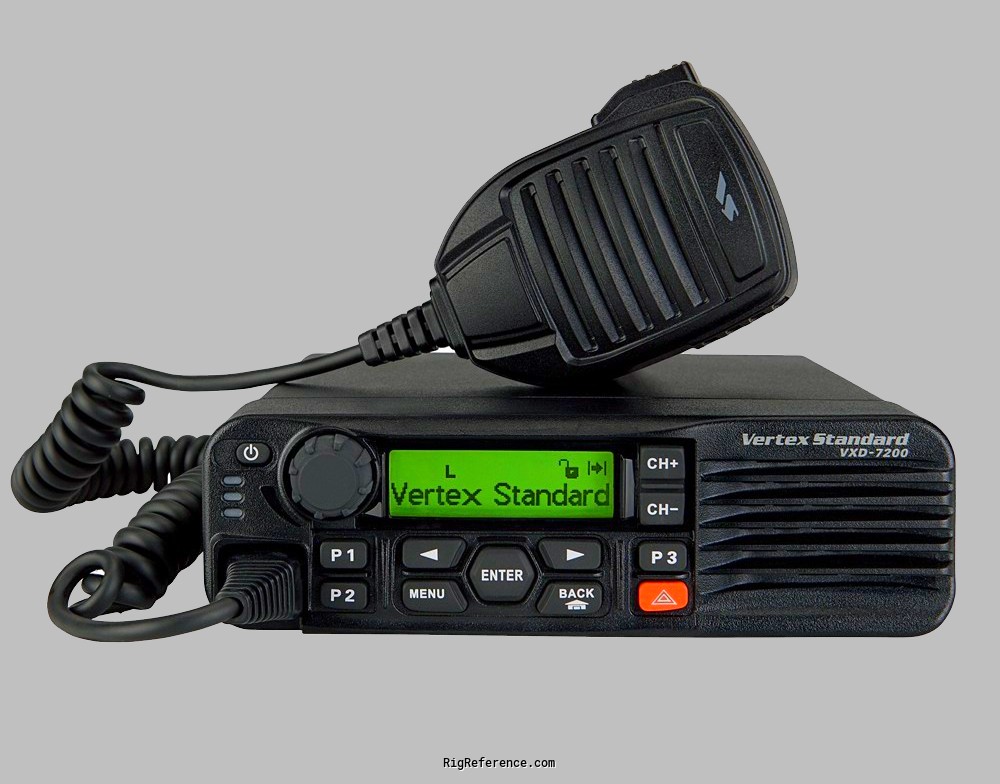

Vertex Standard VXD-7200

Dual band FM Transceiver

View all reviews (0) Add a review Add to my shack

Image wanted



Login or Register to upload images

Find Vertex Standard VXD-7200 rigs and spare parts on eBay Find the Vertex Standard VXD-7200 on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
134-174 / 403-470 / 450-512 MHz
TX-range
134-174 / 403-470 / 450-512 MHz
HAM bands
2m  70cm
Stability
± 0.5 p.p.m.
Tuning steps
12.5 / 20 / 25 kHz
Filters
?

Receiver

Modulations
FM   DMR
Sensitivity
Analogue 12dB SINAD: 0.3 μV 0.22 μV typical
Digital: 5% BER: 0.3 μV
Selectivity
TIA603:
VHF: 65 dB @ 12.5 kHz, 80 dB @ 25 kHz
UHF: 65 dB @ 12.5 kHz, 75 dB @ 25 kHz
TIA603C:
VHF: 50 dB @ 12.5 kHz, 80 dB @ 25 kHz
UHF: 50 dB @ 12.5 kHz, 75 dB @ 25 kHz
Receiver system
?
IF-frequencies
?
Image rejection
70 dB
Audio output
3 W internal, 13 W external

Transmitter

Modulations
FM   DMR
RF-Output
VHF: 1/45 W, UHF: 1/40 W

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
13.8 V DC ± 20%
Current drain RX
810 mA, 2A max
TX
14.5 A max

Physical

Dimensions (w×h×d)
51 × 175 × 206 mm (2.01 × 6.89 × 8.11 in)
Weight
1.80 kg (4.0 lbs)
Form factor
Mobile
Manufactured
Between 2013 and 201x
MPN
VERTEX-STANDARD-VXD-007200

Other features

Memories
512 channels in 1 bank(s)
Usage
Commercial / Land mobile communication
Features + options
?
