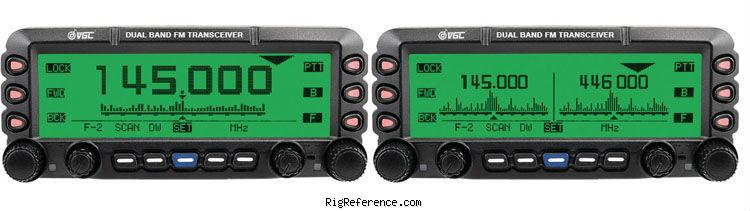

The Vero Global Communication VR-6600PRO is a dual band FM transceiver. It covers 2 m / 1.25 m / 70 cm bands for transmission and AM: 0.5-1710 MHz, FM: 76-250 / 300-520 MHz for reception. The receiver system is FM/AM: double conversion with a frequency stability of ± 2.5 p.p.m. Tuning steps are selectable from 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 / 200 kHz. The transceiver requires 13.8 V DC and draws 0.5 A in receive mode and 10 A max in transmit mode. Dimensions are 46 × 140 × 150 mm and it weighs 2.1 kg. It features a detachable front panel.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 / 200 kHz
- Memories
- ?
Receiver
- RX-range
- AM: 0.5-1710 MHz
FM: 76-250 / 300-520 MHz - Modulations
- AM FM N-FM W-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- FM/AM: double conversion
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 2 m / 1.25 m / 70 cm
- Modulations
- FM N-FM
- RF-output
- ?
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- 0.5 A
- TX
- 10 A max
Physical
- Dimensions (w×h×d)
- 140 × 46 × 150 mm (5.51 × 1.81 × 5.91 in)
- Weight
- 2.10 kg (4.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2014 and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Detachable front panel
- Accessories
- -
- RigReference ID
- 6102
- MPN
- VERO-GLOBAL-COMMUNICATION-VR-006600PRO
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Vero Global Communication VR-6600PRO. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Vero Global Communication VR-6600PRO is around:
- USD 207 ~ USD 384
This estimate is based on similar equipment and may not reflect the exact value of this model.
