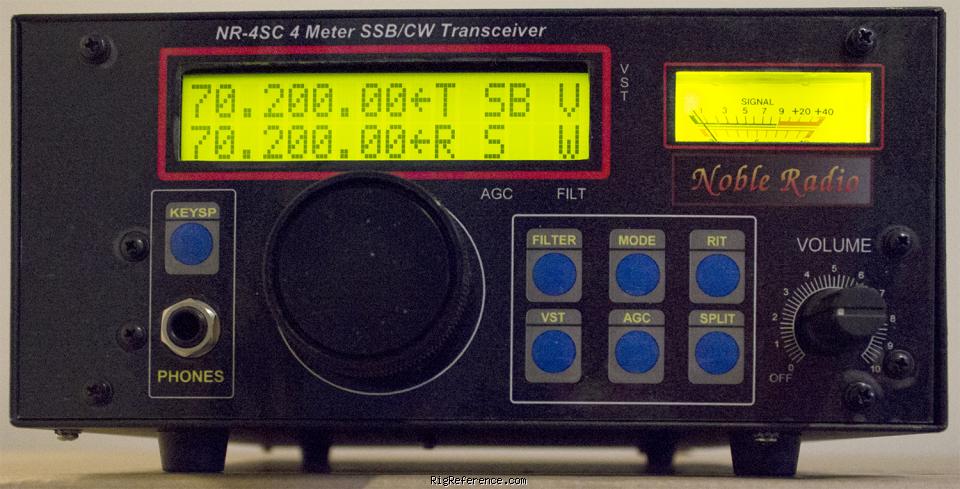

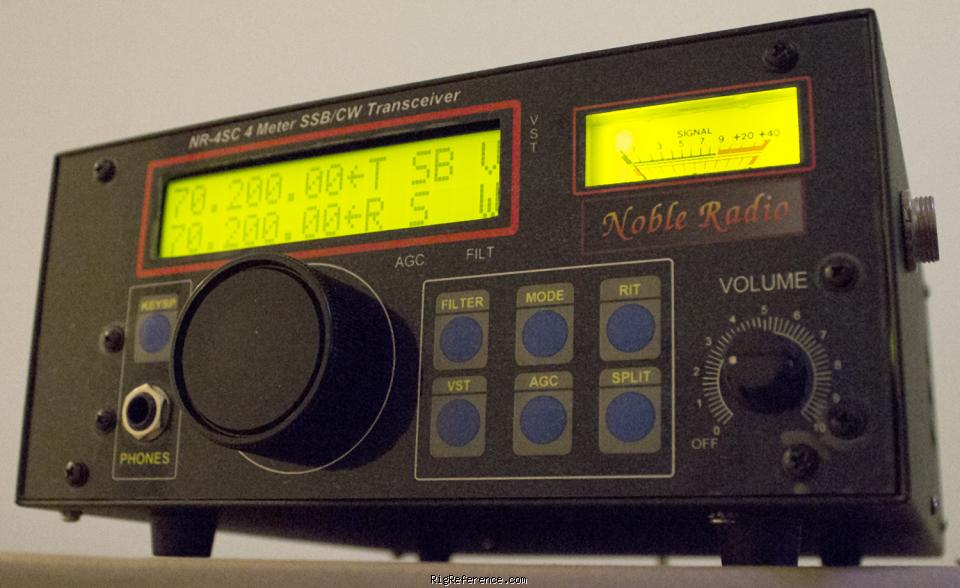

The Noble Radio NR-4SC is a simple to use 10 Watt (minimum) 4 Meter SSB/CW transceiver aimed at the European market. The radio operates USB and CW. The NR-4SC uses a single conversion design with an IF frequency of 10.7 MHz. Front end bandpass filters limit out of band signals into the RF Preamp stage.
Price when new in 2014: EUR 499,-
General characteristics
- HAM bands
- 4m
- Frequency stability
- ?
- Tuning steps
- Variable Speed Tuning VST
- Memories
- ?
Receiver
- RX-range
- 69.9-70.4 (4m) MHz
- Modulations
- CW USB LSB
- Sensitivity
- -130dbm MDS
- Selectivity
- 3.0 kHz (-6dB), shape factor: 1.7
500 Hz (-6dB), shape factor: 2.4 - Filters
- 3.0 kHz / 500 hz
- Receiver system
- Single conversion
- IF-frequencies
- 10.7 MHz
- Image rejection
- 100 dB
- Audio output
- 1 Watt at 1% THD, 1.5 W at 5%
Transmitter
- TX-range
- 69.9-70.4 (4m) MHz
- Modulations
- CW USB LSB
- RF-output
- 10 W PEP

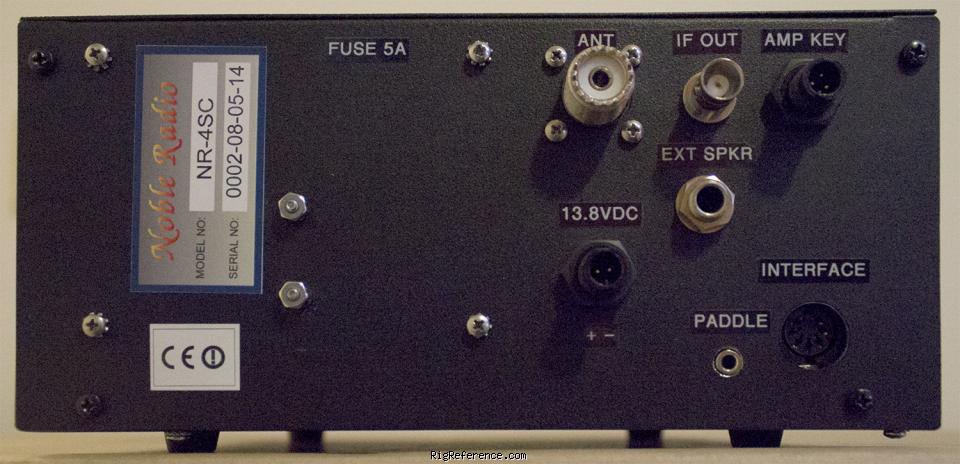

Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- 650 mA
- TX
- 4 A
Physical
- Dimensions (w×h×d)
- 221 × 100 × 221 mm (8.70 × 3.94 × 8.70 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 2014 and 20xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Analoge S-meter
- Accessories
- -
- RigReference ID
- 6082
- MPN
- NOBLE-RADIO-NR-000004SC
