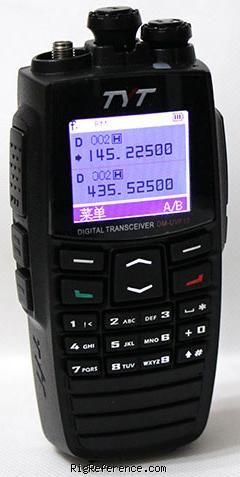

The TYT DM-UVF10 is a dual-band transceiver covering 136-174 / 400-480 MHz. It has a frequency stability of ± 2.5 p.p.m. and tuning steps of 12.5 kHz. Image rejection is 84 dB. RF output is 0.5/5 W. Audio output is 1 W @ 3% THD. The radio features 2 memory banks with 256 channels. It operates on a 7.4 V DC, 1800 mAh Li-ion battery and has an IP67 rating. Dimensions are 61 × 106 × 33 mm. Current drain during transmit is 1.6 A max.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 12.5 kHz
- Memories
- 256 channels in 2 bank(s)
Receiver
- RX-range
- 136-174 / 400-480 MHz
FM-radio - Modulations
- FM
- Sensitivity
- Analog
0.35 µV / -116 dBm (20 dB SINAD)
0.22 µV / -120dBm (Type)
Digital
0.3 µV / -117.4 dBm (BER 5%)
0.7 µV / -110 dBm (BER 1%) - Selectivity
- ?
- Filters
- 12.5 kHz
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 84 dB
- Audio output
- 1 W @ 3% THD
Transmitter
- TX-range
- 136-174 / 400-480 MHz
- Modulations
- FM
- RF-output
- 0.5 / 5 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.4 V DC, 1800 mAh Li-ion
- Current drain RX
- ?
- TX
- 1.6 A max
Physical
- Dimensions (w×h×d)
- 106 × 61 × 33 mm (4.17 × 2.40 × 1.30 in)
- Weight
- 270 gr (9.5 oz)
- Form factor
- Handheld
- Manufactured
- Between 2014 and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- IP67
- Accessories
- -
- RigReference ID
- 6091
- MPN
- TYT-DM-UVF000010
