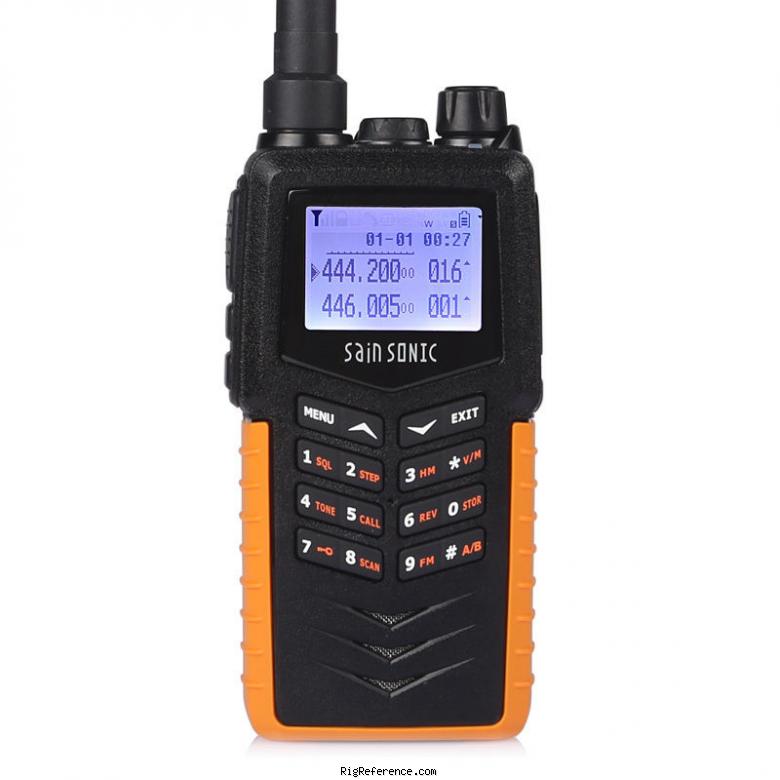

One more Baofeng UV-5R clone.

General characteristics

HAM bands
2m  70cm
Frequency stability
± 2.5 p.p.m.
Tuning steps
2.5 / 5 / 6.25 / 10 / 12.5 / 25 kHz
Memories
240 channels in 1 bank(s)

Receiver

RX-range
66-108 / 136-174 / 400-520 MHz
Modulations
FM   N-FM
Sensitivity
≤ 0.2 µV (12 dB SINAD)
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
Internal speaker

Transmitter

TX-range
136-174 / 400-520 MHz
Modulations
FM   N-FM
RF-output
1 / 3 / 5 W

Connections

Antenna
-
Impedance
50Ω
Other
-

Electrical

Power requirements
7.4 V DC Li-ion, 1800 mAh
Current drain RX
380 mA max
TX
1.5 A max

Physical

Dimensions (w×h×d)
110 × 58 × 32 mm (4.33 × 2.28 × 1.26 in) excl. antenna
Weight
?
Form factor
Handheld
Manufactured
Between 2014 and 201x in China

Other features

Usage
Amateur / Ham radio operators
Features + options
IP66 (dust- and waterproof)
7-color display
LED flashlight
'Man down' function
DTMF
CTCSS / DCS
Password protection
Accessories
-
RigReference ID
6097
MPN
SAINSONIC-RST000599
