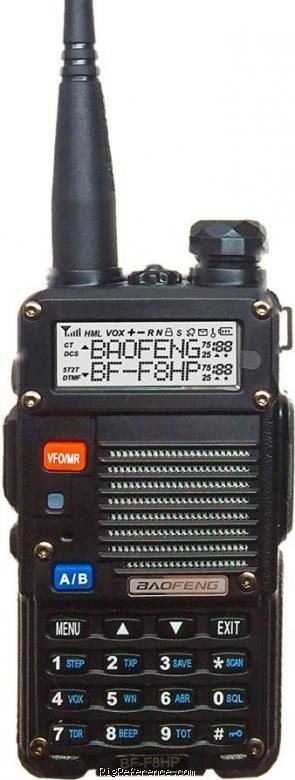

Very similar to the Baofeng UV-5R.

General characteristics

HAM bands
2m  70cm
Frequency stability
± 2.5 p.p.m.
Tuning steps
2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 30 / 50 kHz
Memories
128 channels in 1 bank(s)

Receiver

RX-range
68-108 (FM-radio) / 136-174 / 400-520 MHz
Modulations
FM   N-FM
Sensitivity
≤0.25μV (wide band)
≤0.35μV (narrow band)
Selectivity
?
Filters
12.5 / 25 kHz
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
700 mW @ 10%

Transmitter

TX-range
136-174 / 400-520 MHz
Modulations
FM   N-FM
RF-output
1 / 4 / 8 W

Connections

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
7.4 V DC Li-ion, 2000 mAh
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Handheld
Manufactured
Between 2014 and 202x in China

Other features

Usage
Amateur / Ham radio operators
Features + options
25KHz/12.5KHz Switchable (Wide/Narrow Band)
FM Radio (65.0MHz-108.0MHz)
Large Tri-color LCD Display (3 Selectable Colors)
LED Flashlight
High /Low RF Power Switchable
VOX
50 CTCSS/ 104 DCS Tones
Tone searching/scanning
Dual standby
PC programmable
Transmitter time-out timer(TOT)
Busy channel lock-out(BCLO)
Accessories
-
RigReference ID
6107
MPN
BAOFENG-BF-F000008HP

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Baofeng BF-F8HP. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Baofeng BF-F8HP is around:

  • USD 37.00 ~ USD 11.00
  • CAD 50.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2021 USD 38.00 New / Mint eBay
2019 USD 50.00 New / Mint KI5DZL
2018 USD 65.00 New / Mint John Richard Dorenbecher
2018 USD 50.00 New / Mint M. Eric Carr
2017 CAD 70.00 New / Mint dak47922
