General characteristics

HAM bands
2m  70cm
Frequency stability
± 1.0 p.p.m.
Tuning steps
12.5 kHz
Memories
1000 channels in 32 bank(s)

Receiver

RX-range
136-174 / 400-480 MHz
Modulations
FM   FSK
Sensitivity
Analog
0.35 µV / -116dBm (20dB SINAD)
0.22 µV / -120dBm (Type)

Digital
0.3 µV / -117.4dBm (BER 5%)
0.22 µV / -110dBm (BER 1%)
Selectivity
?
Filters
12.5 kHz
Receiver system
?
IF-frequencies
?
Image rejection
84 dB
Audio output
≤ 1000 mW @ 16Ω

Transmitter

TX-range
136-174 / 400-480 MHz
Modulations
FM   FSK
RF-output
1 / 5 W

Connections

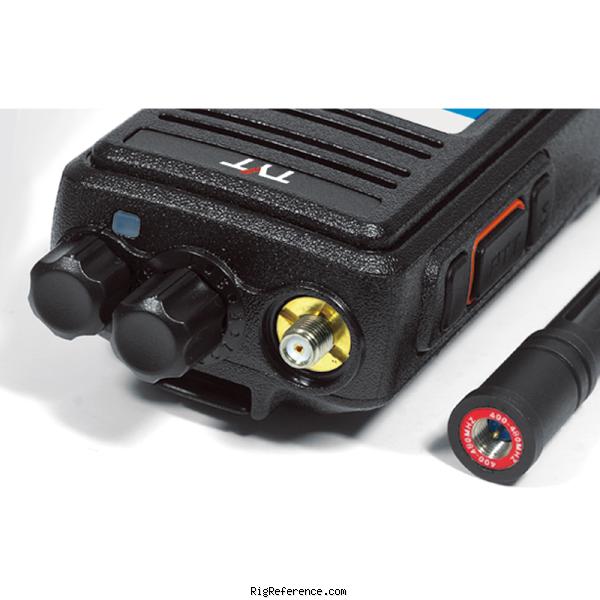

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
7.4 V DC, 1700 mAh Li-ion
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
131 × 61 × 36 mm (5.16 × 2.40 × 1.42 in)
Weight
258 gr (9.1 oz)
Form factor
Handheld
Manufactured
Between 2014 and 20xx

Other features

Usage
Amateur / Ham radio operators
Features + options
IP67
Accessories
-
RigReference ID
6135
MPN
TYT-MD-000380

Manuals, diagrams and brochures

TYT MD-380 User's Manual PDF - 18.94 MB, submitted by Gerd

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used TYT MD-380. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the TYT MD-380 is around:

  • USD 124.00 ~ USD 112.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2016 USD 130.00 New / Good Brian
2015 USD 125.00 New / Good ke3oxmsd
