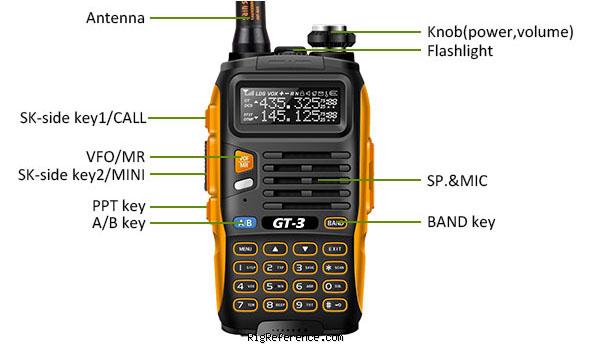

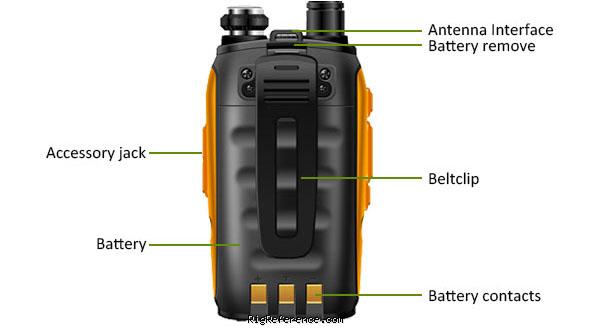

Baofeng GT-3 Mark II

General characteristics

HAM bands

2m  70cm

Frequency stability

± 2.5 p.p.m.

Tuning steps

2.5 / 5 / 6.25 / 10 / 12.5 / 25 kHz

Memories

?

Receiver

RX-range

65-108 / 136-174 / 400-480 MHz

Modulations

FM   N-FM

Sensitivity

≤ 0.2 µV (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

1 W

Transmitter

TX-range

136-174 / 400-480 MHz

Modulations

FM   N-FM

RF-output

1 / 5 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

Li-ion battery

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

51 × 125 × 25 mm (2.01 × 4.92 × 0.98 in)

Weight

120 gr (4.2 oz)

Form factor

Handheld

Manufactured

Between 2014 and 201x in China

Other features

Usage

Amateur / Ham radio operators

Features + options

VOX

Accessories

-

RigReference ID

6098

MPN

BAOFENG-GT-000003-MARK-II

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Baofeng GT-3 Mark II. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Baofeng GT-3 Mark II in Good condition is around:

• USD 25

Price History Chart

These estimates are based on the following prices:
