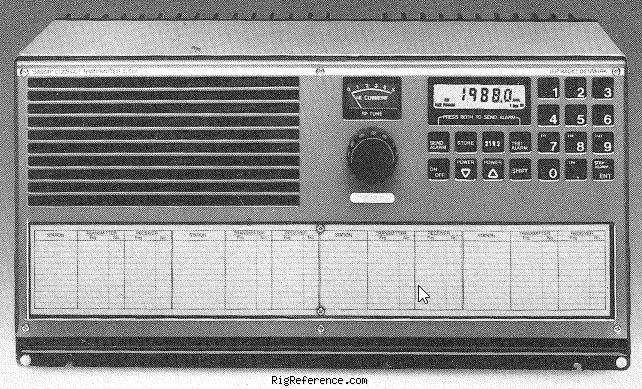

The Sailor T2131 is similar to the Sailor T2031 but with a more powerful end stage. It can be used either as a stand-alone unit or in combination with other elements of the Compact 2000 program.
General characteristics
- HAM bands
- ?
- Frequency stability
- Less then ± 20 hz (0-40 °C)
- Tuning steps
- ?
- Memories
- 128 channels in 1 bank(s)
Receiver
- RX-range
- 1600-4300 kHz
- Modulations
- SSB
- Sensitivity
- J3E (SSB) <10 dB/µV for 20 dB SINAD
H3E (AM) <24 dB/µV for 20 dB SINAD - Selectivity
- J3E (SSB) 350 Hz to 2700 Hz at -6 dB
H3E (AM) ±3.3 kHz at -6 dB - Filters
- ?
- Receiver system
- Double conversion super heterodyne
- IF-frequencies
- 1st IF 70 MHz. 2nd 10.73 MHz
- Image rejection
- ≥ 70 dB
- Audio output
- ?
Transmitter
- TX-range
- 1600-4300 kHz
- Modulations
- SSB
- RF-output
- 600 W PEP
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 21.6 - 31.2 V DC
- Current drain RX
- 0.9 A
- TX
- 13 A max
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 18.00 kg (39.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in Denmark
Other features
- Usage
- Marine / Navy
- Features + options
- 94 Quick-select channels
Manual antenna tuner
One key selection of 2192 kHz distress frequency
Membrane keypad - Accessories
- -
- RigReference ID
- 6138
- MPN
- SAILOR-T002131
