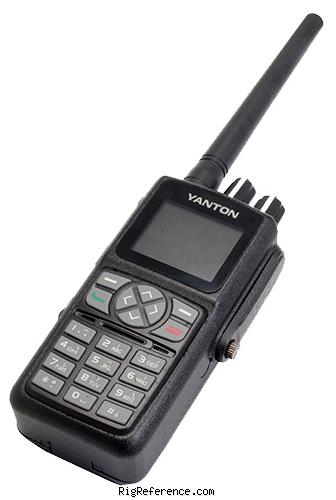

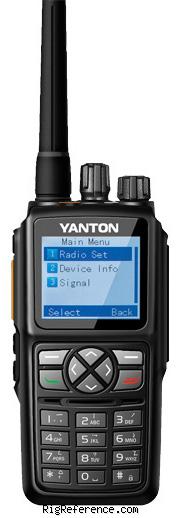

Yanton DM-980

Dual mode (digital + analog) handheld transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Yanton DM-980 is a dual mode (digital + analog) handheld transceiver. It covers 136-174 / 400-480 MHz for both transmit and receive. The RF output is 5 W and the audio output is 500 mW. Features include digital encryption, AMBE5000 vocoder, SMS function, and LCD display. It has 1 memory bank with 1000 channels. Power requirements are 7.4 V DC, 2800 mAh Li-ion Battery. Dimensions are 60 × 122 × 38 mm. The weight is 235 gr. Current drain is 100 mA max in receive and 1 A max in transmit.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ± 2.5 p.p.m.
Tuning steps: ?
Memories: 1000 channels in 1 bank(s)

Receiver

RX-range: 136-174 / 400-480 MHz
Modulations: FM DV
Sensitivity: ＜ 0.20 µV (12 dB SINAD)
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 500 mW

Transmitter

TX-range: 136-174 / 400-480 MHz
Modulations: FM DV
RF-output: 5 W

Connections

Antenna: SMA
Impedance: 50Ω
Other: -

Electrical

Power requirements: 7.4 V DC, 2800 mAh Li-ion Battery
Current drain RX: 100 mA max
TX: 1 A max

Physical

Dimensions (w×h×d): 122 × 60 × 38 mm (4.80 × 2.36 × 1.50 in)
Weight: 235 gr (8.3 oz)
Form factor: Handheld
Manufactured: Between 201x and 201x in China

Other features

Usage: Amateur / Ham radio operators
Features + options: Digital encryption
AMBE5000 vecoder
SMS function
LCD display
Accessories: -
RigReference ID: 6155
MPN: YANTON-DM-000980
