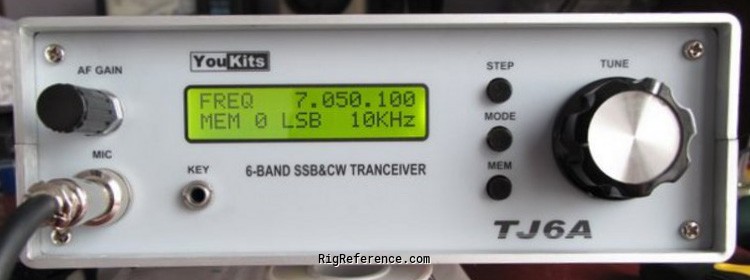

Youkits TJ6A 6 band SSB/CW transceiver

  Add a review   View all reviews (0)   Add to my shack




Frequency range

RX-range
2.5-4.1 / 5-8 / 10-15.1 / 18-22 MHz
TX-range
1.5-4 / 7-7.5 / 10.1-10.15 / 14-14.5 / 18.068-18.168 / 21-21.5 MHz
HAM bands
80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m
Stability
0.6 µV (10 dB S/N)
Tuning steps
1 / 10 / 100 Hz / 1 / 10 / 100 kHz
Filters
-

Find the Youkits TJ6A on ebay

Receiver

Modulations
CW   USB   LSB
Sensitivity
0.3 µV
Selectivity
-
Receiver system
Single conversion superheterodyne
IF-frequencies
9 MHz
Image rejection
-
Audio output
-

Transmitter

Modulations
CW   USB   LSB
RF-Output
5-8 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8 V DC
Current drain RX
180 mA
TX
-

Physical

Dimensions (w×h×d)
-
Weight
-
Form factor
Kit
Manufactured
Between 20xx and 20xx in Canada

Other features

Memories
8 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
