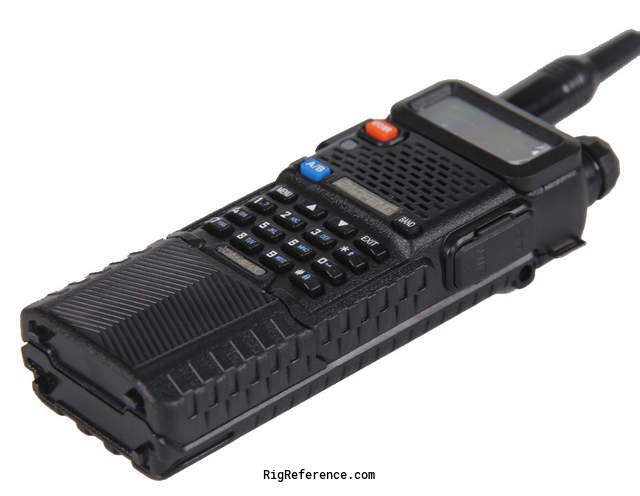

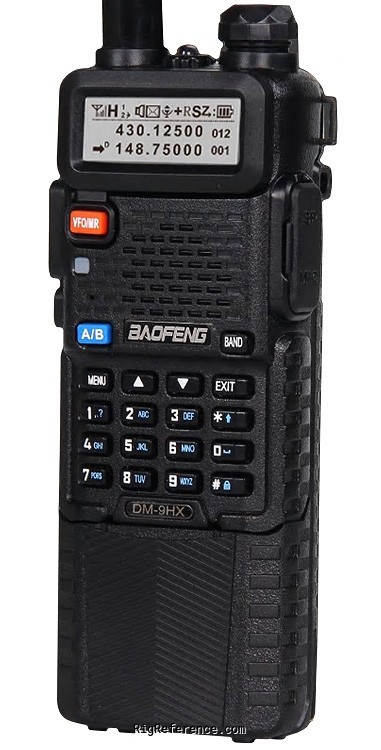

Baofeng DM-9HX

Dual-band DMR handheld

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Baofeng DM-9HX rigs and spare parts on eBay Find the Baofeng DM-9HX on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
65-108 / 136-174 / 400-480 MHz
TX-range
136-174 / 400-480 MHz
HAM bands
2m  70cm
Stability
± 2.5 p.p.m.
Tuning steps
2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 kHz
Filters
?

Receiver

Modulations
FM   N-FM   W-FM   DMR
Sensitivity
FM: 0.18 µV (12 dB SINAD)
DMR: 0.22 µV (BER <5%)
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
1 W

Transmitter

Modulations
FM   N-FM   DMR
RF-Output
1 / 5 W

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
7.4 V DC Li-ion
Current drain RX
380 mA
TX
1.5 A

Physical

Dimensions (w×h×d)
58 × 140 × 32 mm (2.28 × 5.51 × 1.26 in)
Weight
?
Form factor
Handheld
Manufactured
Between 2018 and 202x in China
MPN
BAOFENG-DM-000009HX

Other features

Memories
1024 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS/PL and DCS
LED flashlight
DMR Tier I and II
256 contacts
Accessories
?
