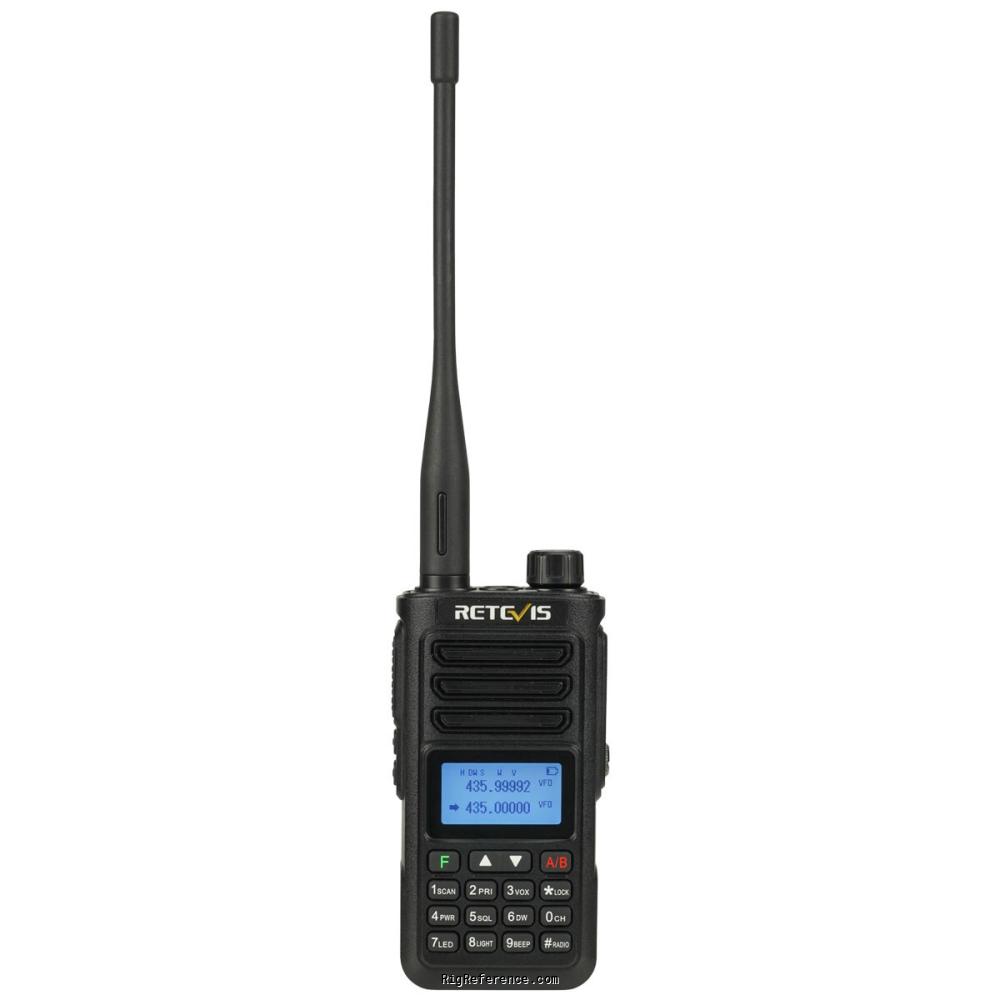

Retevis RA89

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

?

Memories

200 channels in bank(s)

Receiver

RX-range

136-174 / 400-480 MHz

Modulations

FM   N-FM   W-FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

US: 144-148 / 420-450 MHz
EU: 144-146 / 430-440 MHz

Modulations

FM   N-FM

RF-output

10 / 5 / 1 W

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

Li-ion, 2500 mAh

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

62 × 126 × 43 mm (2.44 × 4.96 × 1.69 in)

Weight

295 gr (10.4 oz)

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

IP68 waterproof
Noise reduction
One-key frequency pair
CTCSS / DCS, 2-Tone / 5-Tone
FM broadcast
Flashlight
VOX, scan, TOT, offset
Wireless copy
USB-C charging

Accessories

-

RigReference ID

6727

MPN

RETEVIS-RA000089
