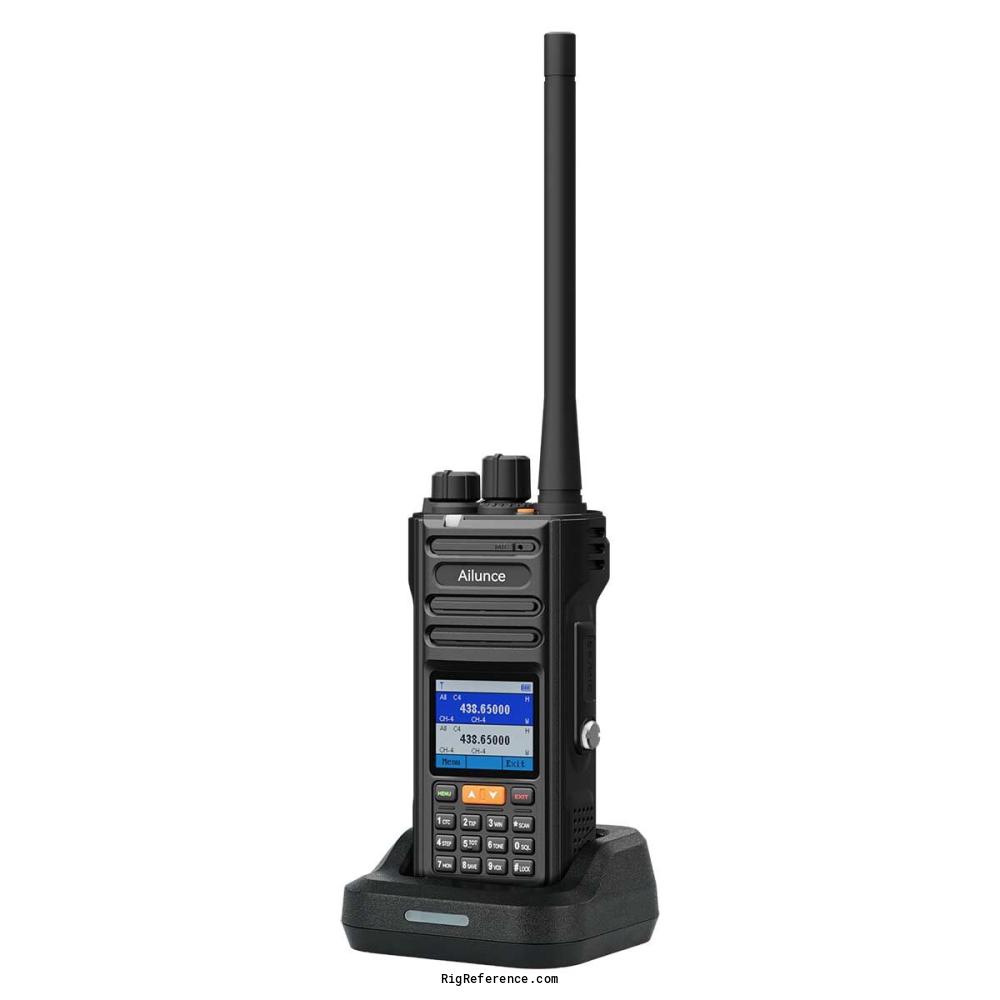

Ailunce HA2

General characteristics

HAM bands

2m  70cm

Frequency stability

±2.5 ppm

Tuning steps

?

Memories

1024 channels in bank(s)

Receiver

RX-range

136-174 / 400-520 MHz
Wideband: 50-600 MHz
Airband: 108-135.975 MHz
FM broadcast: 50-115 MHz

Modulations

AM   FM   N-FM   W-FM

Sensitivity

-122 dBm or better (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

US: 144-148 / 420-450 MHz
EU: 144-146 / 430-440 MHz

Modulations

FM   N-FM

RF-output

10 / 5 / 2 / 1 W

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

Li-ion, 2800 mAh (8.4 V)

Current drain RX

0.5 A or less (standby 100 mA)

TX

Less than 2.65 A

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual band / dual standby
GNSS and APRS
Bluetooth app programming
IP67
Compass
1.77 inch LCD, independent channel knob
DTMF, 1750 Hz tone, split tones
Airband AM, FM radio
Wireless copy, USB-C charging

Accessories

-

RigReference ID

6737

MPN

AILUNCE-HA000002

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Ailunce HA2. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ailunce HA2. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Ailunce HA2 in Good condition is around:

• USD 127

Price History Chart

These estimates are based on the following prices:
