Radtel RT-590

General characteristics

HAM bands

2m  70cm

Frequency stability

±1 ppm

Tuning steps

?

Memories

200 channels in bank(s)

Receiver

RX-range

50-600 MHz
Airband AM 108-136 MHz
FM broadcast 76-108 MHz

Modulations

AM   FM   N-FM   W-FM

Sensitivity

FM (12 dB SINAD): -121 to -123 dBm
AM (10 dB S/N): -113 dBm
WFM: -110 dBm

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

0.5 W or more

Transmitter

TX-range

FCC: 144-148 / 420-450 MHz
CE: 144-146 / 430-440 MHz
Normal: 136-174 / 350-400 / 400-470 MHz

Modulations

FM   N-FM

RF-output

5 W or less

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

?

Current drain RX

?

TX

1.5 A or less

Physical

Dimensions (w×h×d)

60 × 115 × 37 mm (2.36 × 4.53 × 1.46 in)

Weight

234 gr (8.3 oz)

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

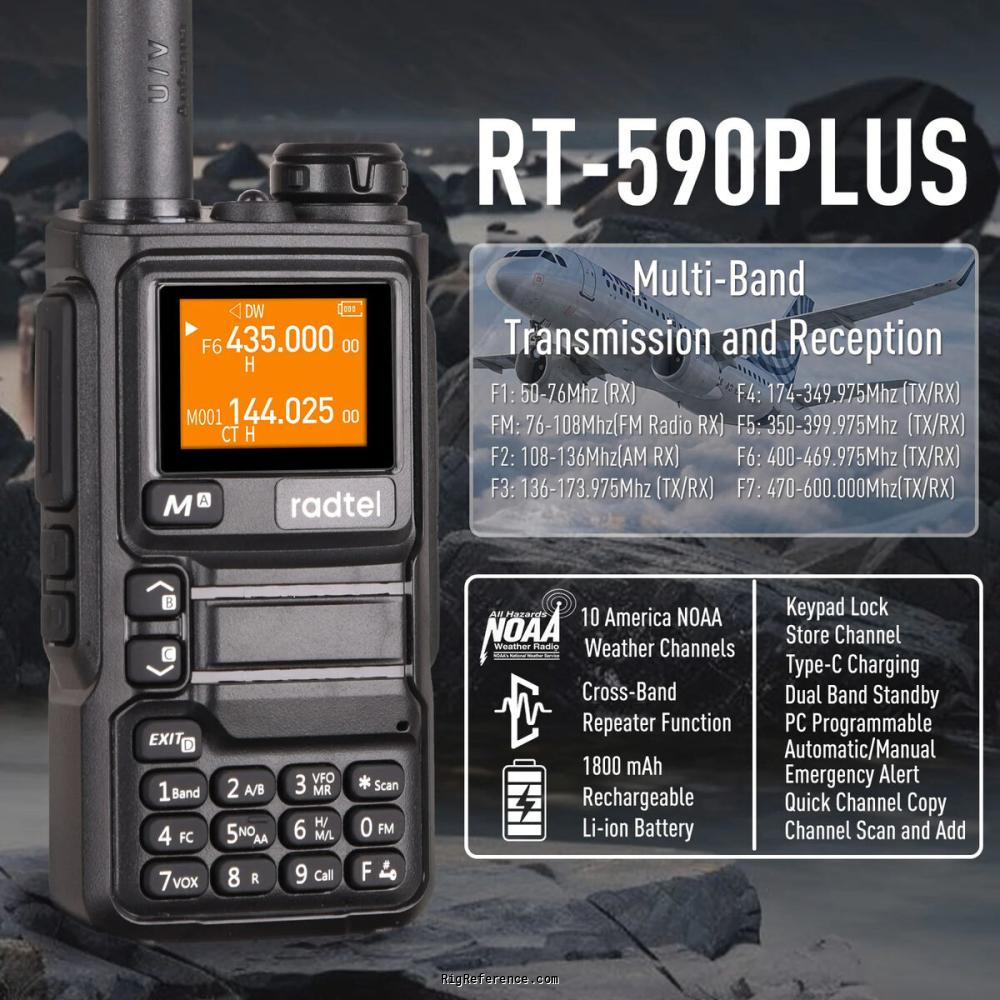

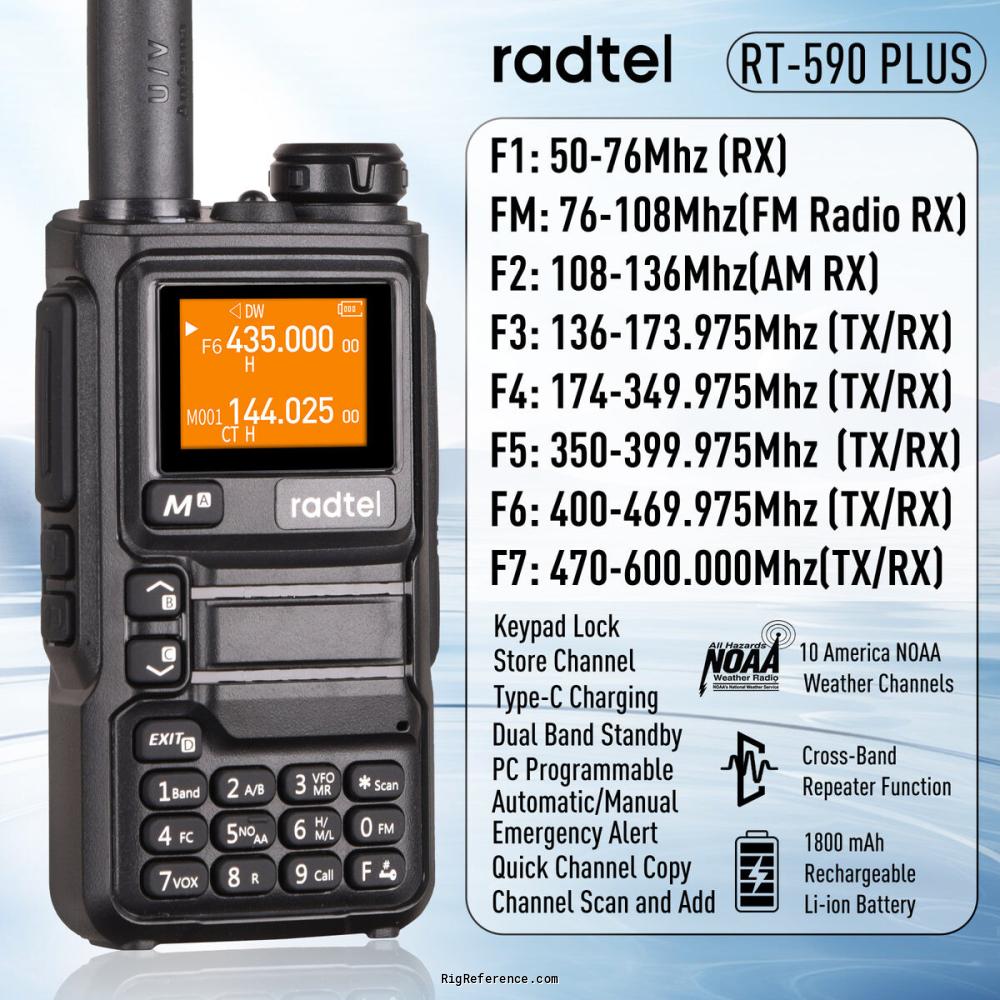

Multi-band handheld (RT-590 Plus)
Airband AM receive
10 NOAA weather channels, 20 FM presets
Cross-band repeat
CHIRP programmable
USB-C charging

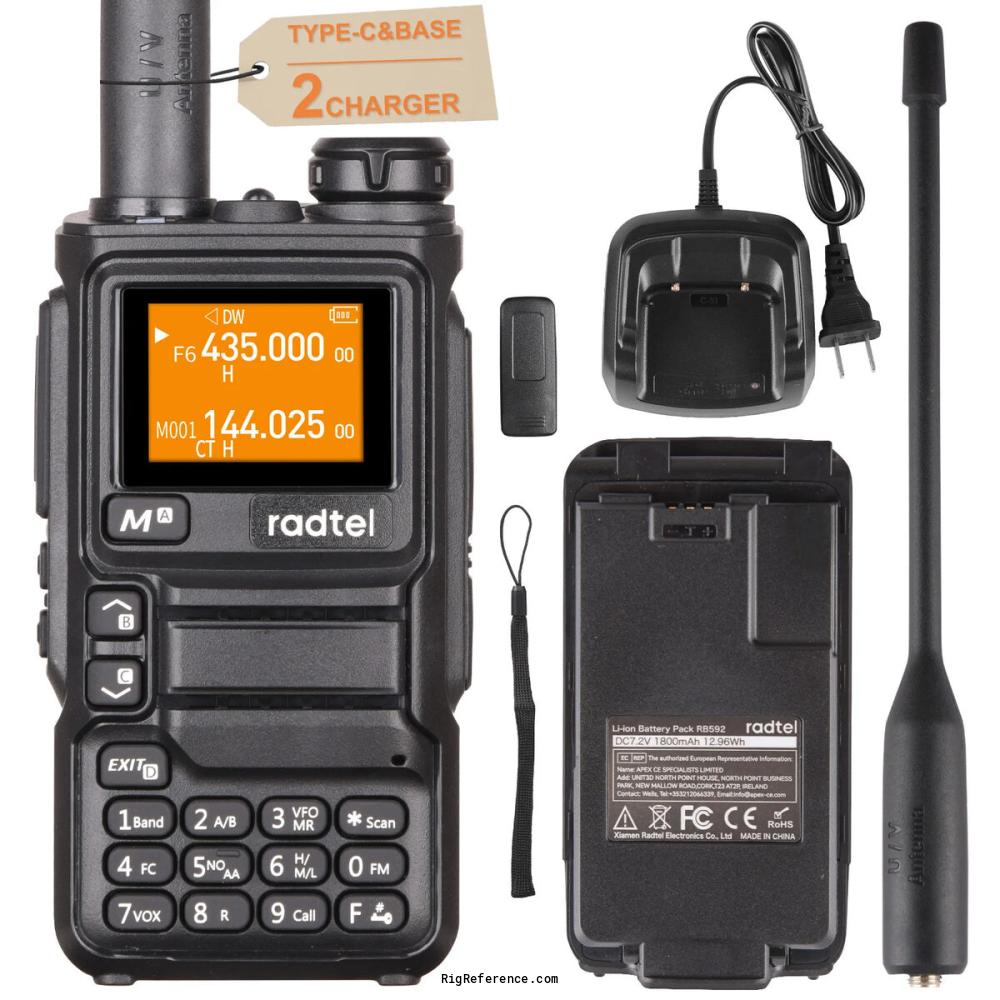

Accessories

-

RigReference ID

6758

MPN

RADTEL-RT-000590

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Radtel RT-590. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radtel RT-590. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Radtel RT-590 in Good condition is around:

• USD 25
