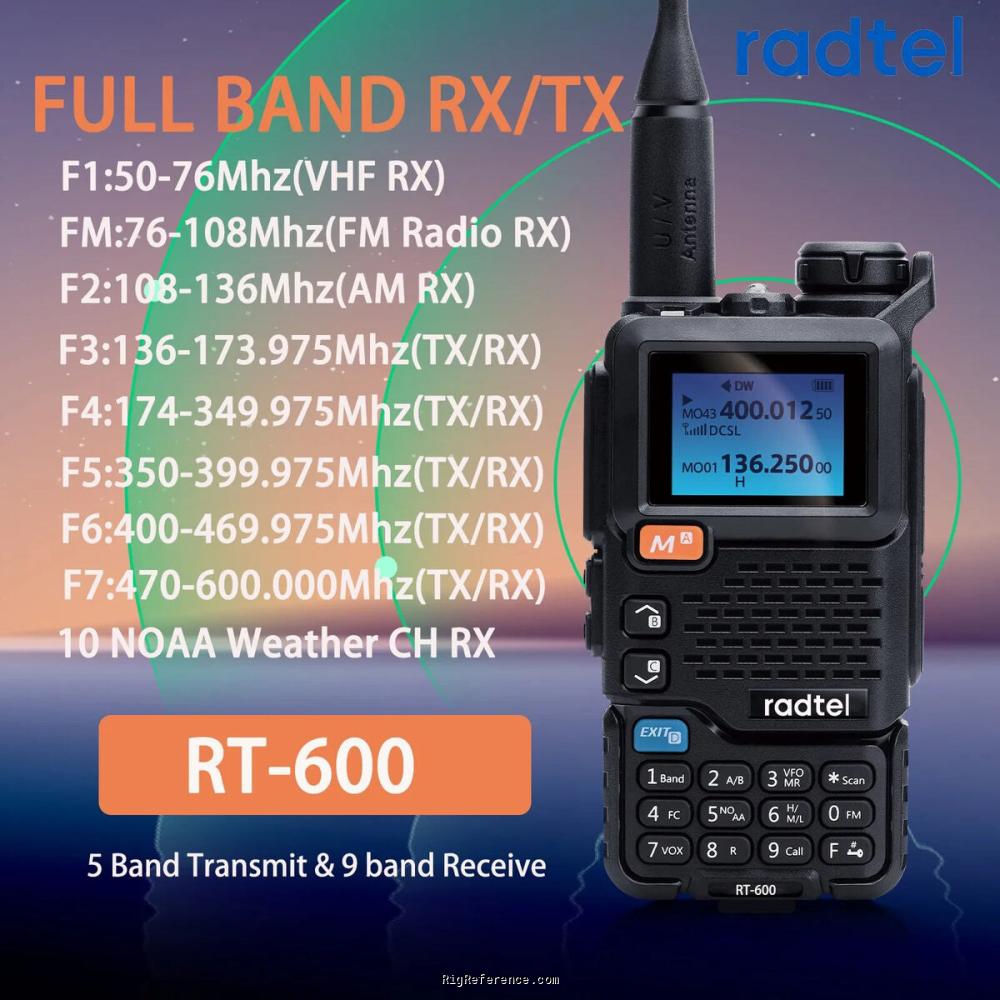

Radtel RT-600

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

?

Memories

200 channels in bank(s)

Receiver

RX-range

50-600 MHz

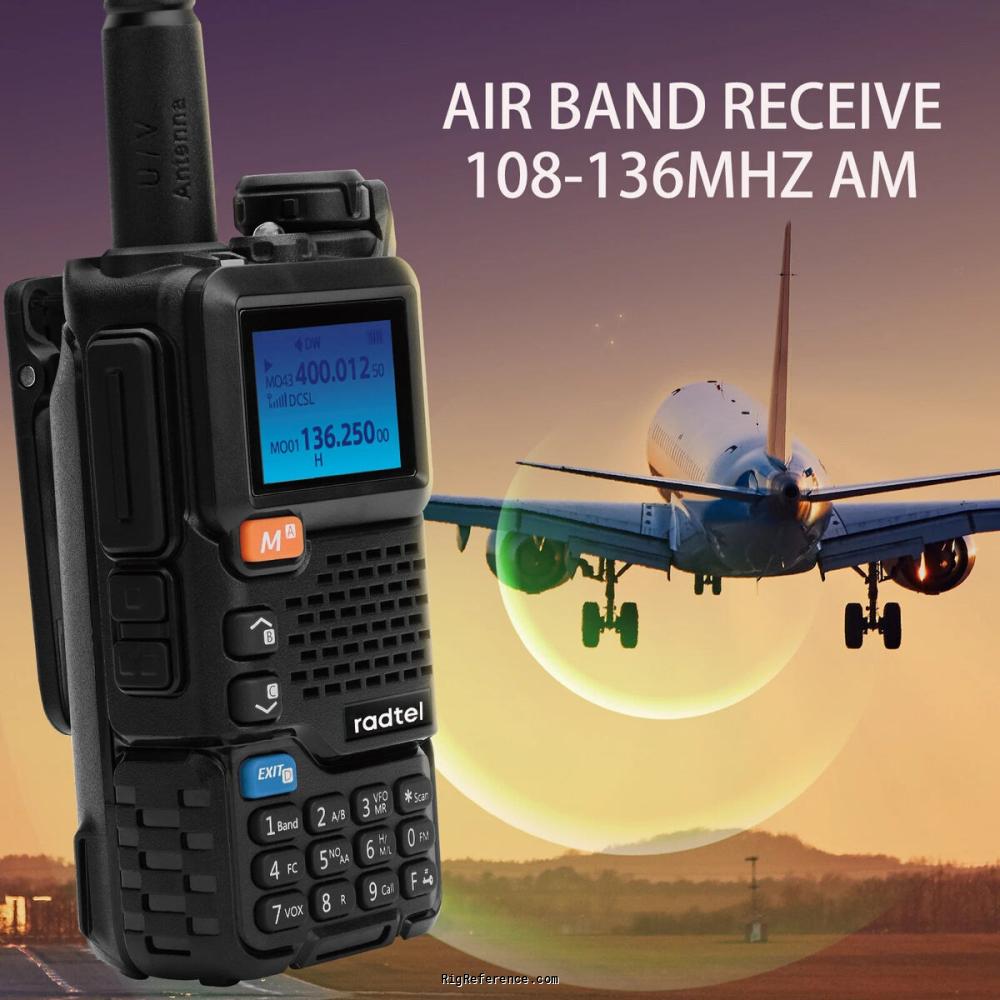

Airband AM 108-136 MHz
FM broadcast 76-108 MHz

Modulations

AM   FM   N-FM   W-FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

136-470 / 470-600 MHz

Modulations

FM   N-FM

RF-output

5 W or less

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

7.2 V Li-ion, 2200 mAh

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

60 × 115 × 37 mm (2.36 × 4.53 × 1.46 in)

Weight

234 gr (8.3 oz)

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Full-band handheld
Airband receive
10 NOAA channels, 20 FM presets
Fast frequency / tone copy
Dual display
Power-on password

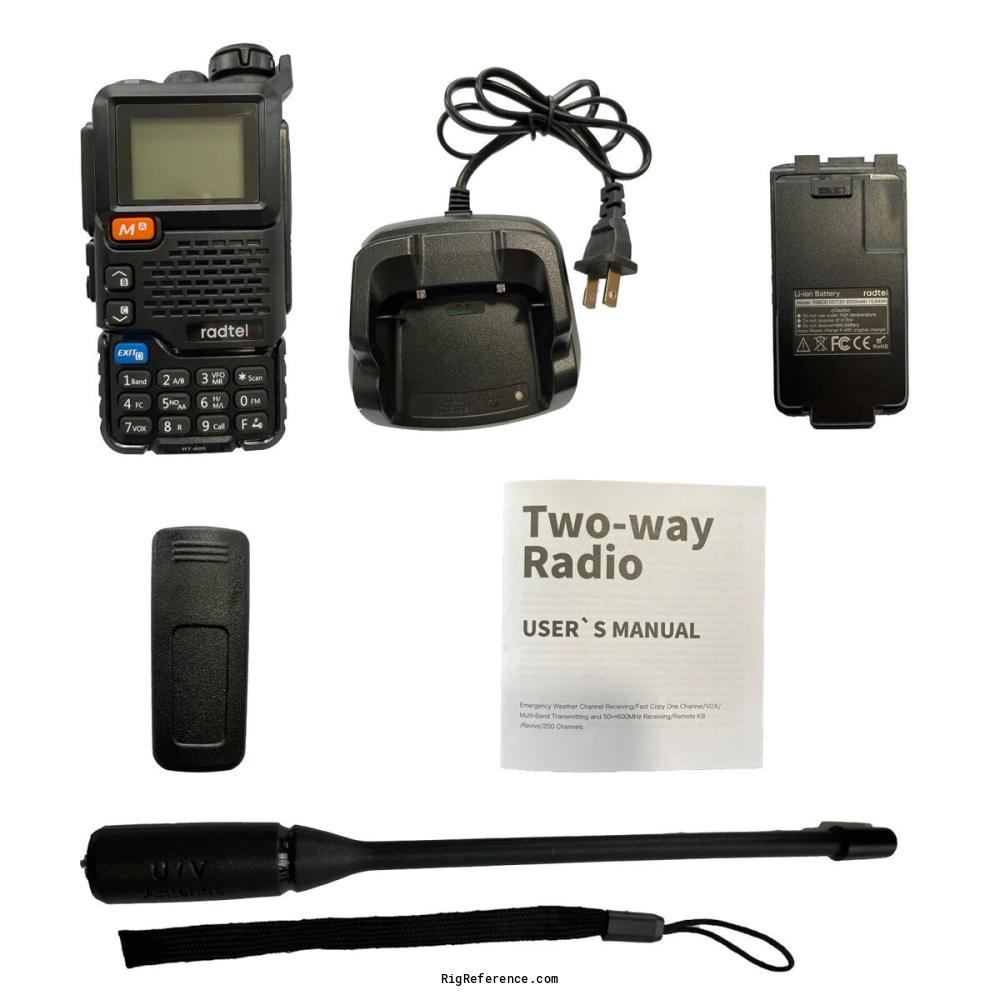

Accessories

-

RigReference ID

6760

MPN

RADTEL-RT-000600

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Radtel RT-600. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radtel RT-600. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Radtel RT-600 in Good condition is around:

• USD 22

Price History Chart

These estimates are based on the following prices:
