Radtel RT-7D

General characteristics

HAM bands

2m  70cm

Frequency stability

±1.5 ppm

Tuning steps

?

Memories

4000 channels in bank(s)

Receiver

RX-range

EU: 144-146 / 430-440 MHz
US: 144-148 / 420-450 MHz
FM broadcast 87.5-108 MHz

Modulations

FM   N-FM   W-FM   DMR

Sensitivity

Analog: 0.25 µV (wide) / 0.35 µV (narrow), 12 dB SINAD
Digital: 0.3 µV (5% BER), 0.7 µV (1% BER)

Selectivity

65 dB (wide) / 60 dB (narrow)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

1 W (16 ohm)

Transmitter

TX-range

EU: 144-146 / 430-440 MHz
US: 144-148 / 420-450 MHz

Modulations

FM   N-FM   DMR

RF-output

VHF: 5 / 2.5 / 1 / 0.2 W
UHF: 4.5 / 2.5 / 0.5 / 0.2 W

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

7.4 V DC ±20%, Li-ion 1800 mAh

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

53 × 103 × 35 mm (2.09 × 4.06 × 1.38 in)

Weight

224 gr (7.9 oz) With battery

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

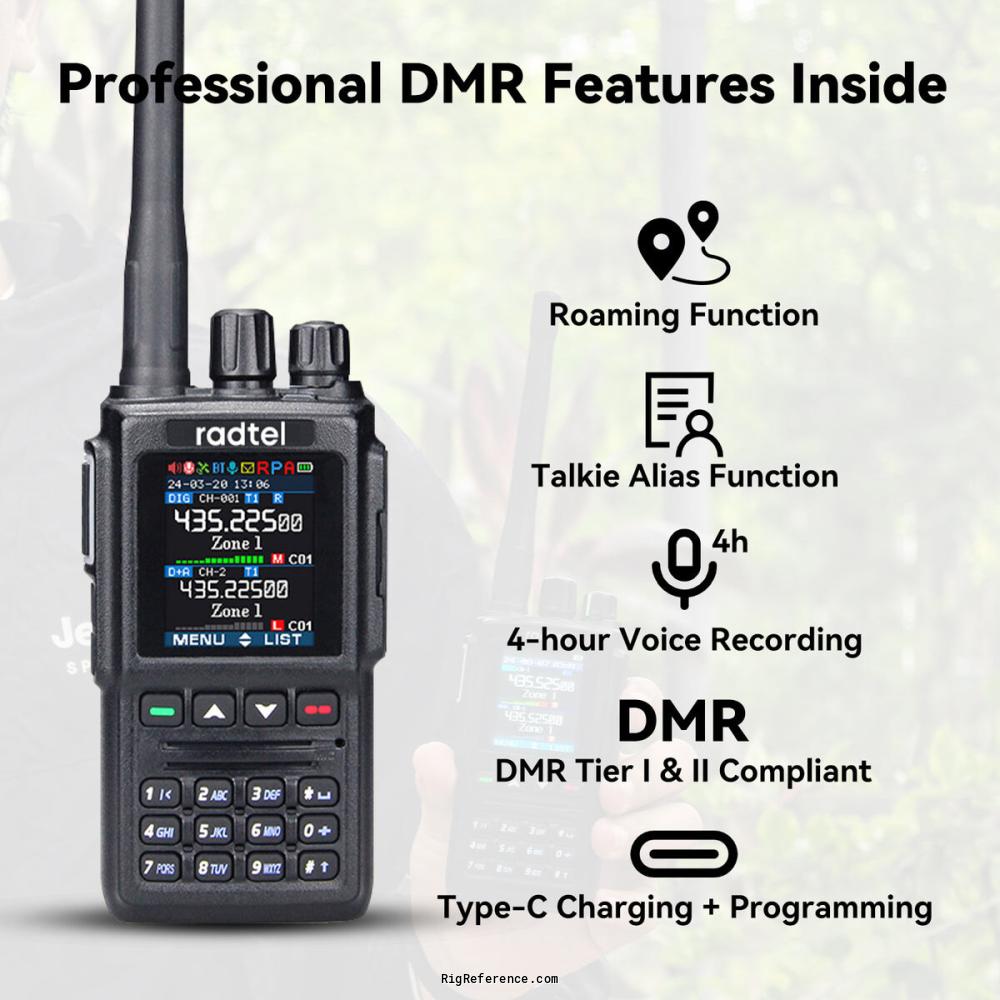

Dual-band DMR / analog
4000 channels, 10,000 talk groups, 500,000 contacts
AES256 and ARC4 encryption
CTCSS / DCS
FM radio

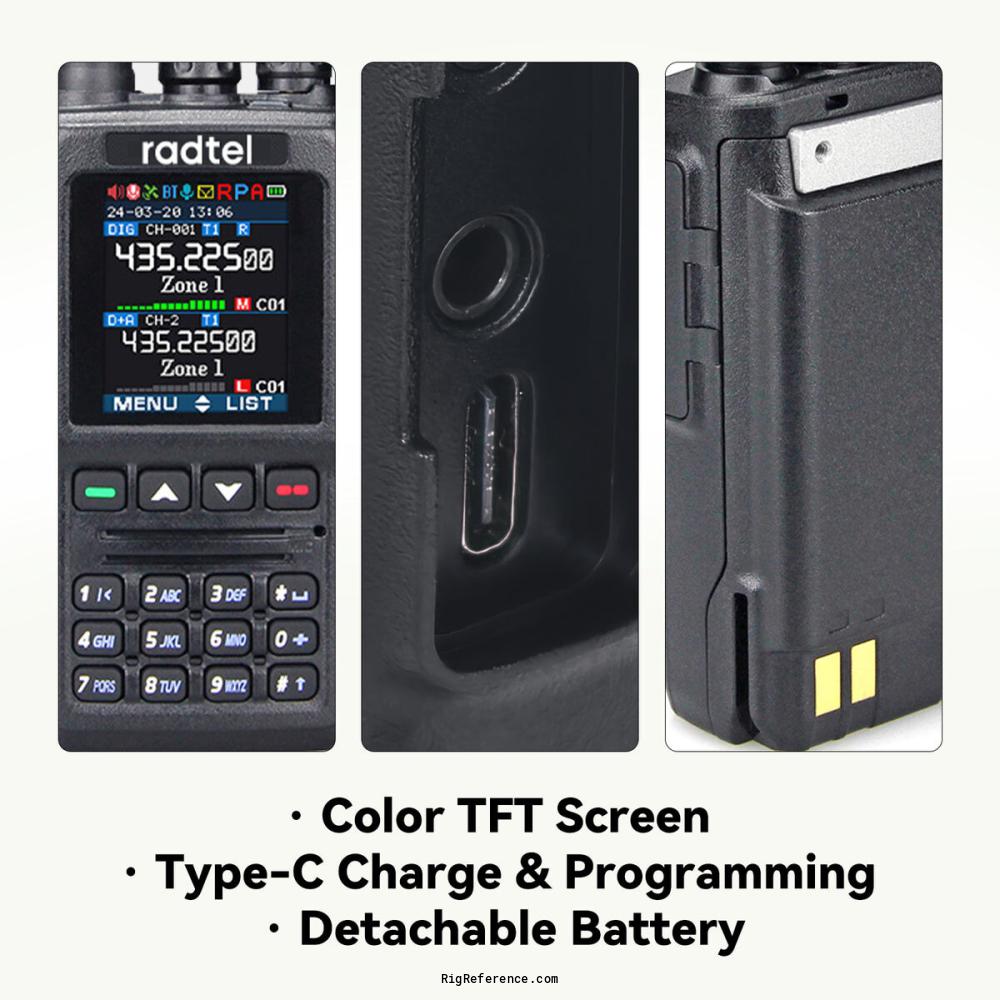

Colour TFT screen, USB-C charging and programming

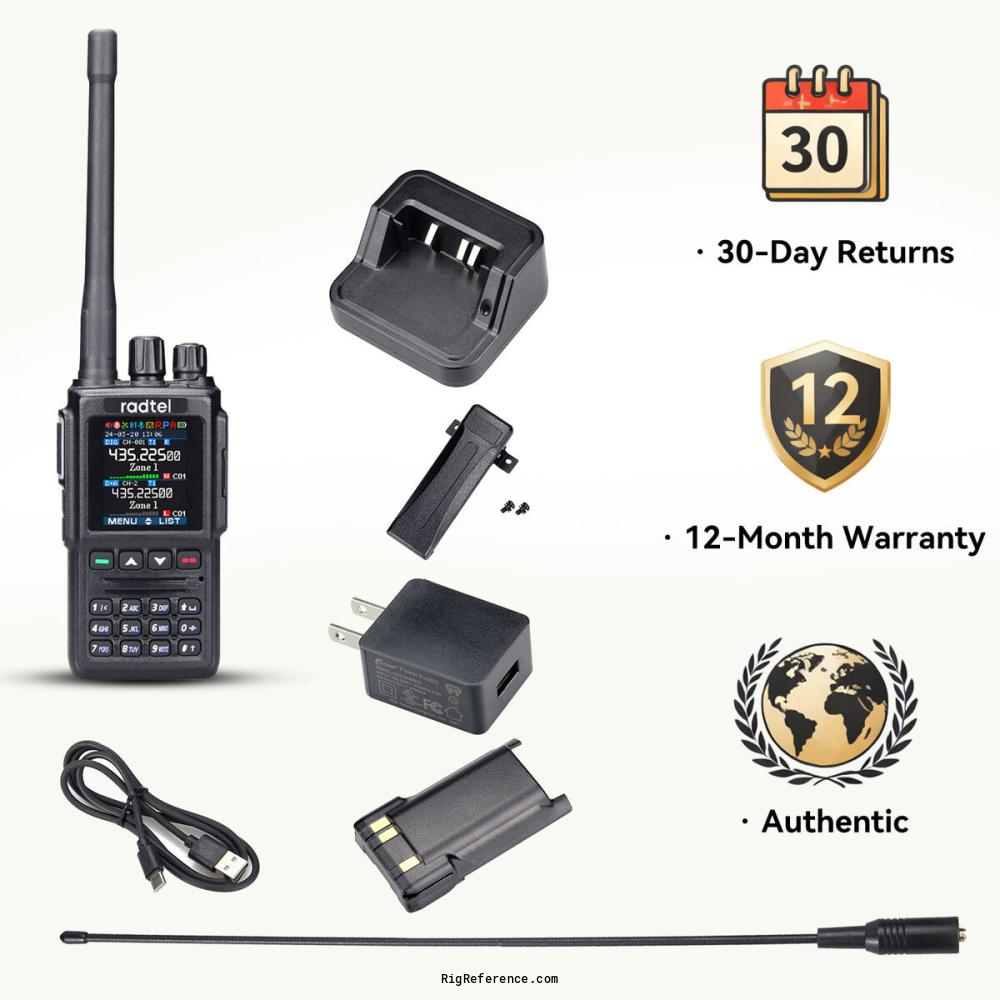

Accessories

-

RigReference ID

6773

MPN

RADTEL-RT-000007D

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Radtel RT-7D. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radtel RT-7D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Radtel RT-7D in Good condition is around:

• USD 99
