Zastone M8

Amateur Handheld Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

Spec table gives 5 W; the product title says 10 W

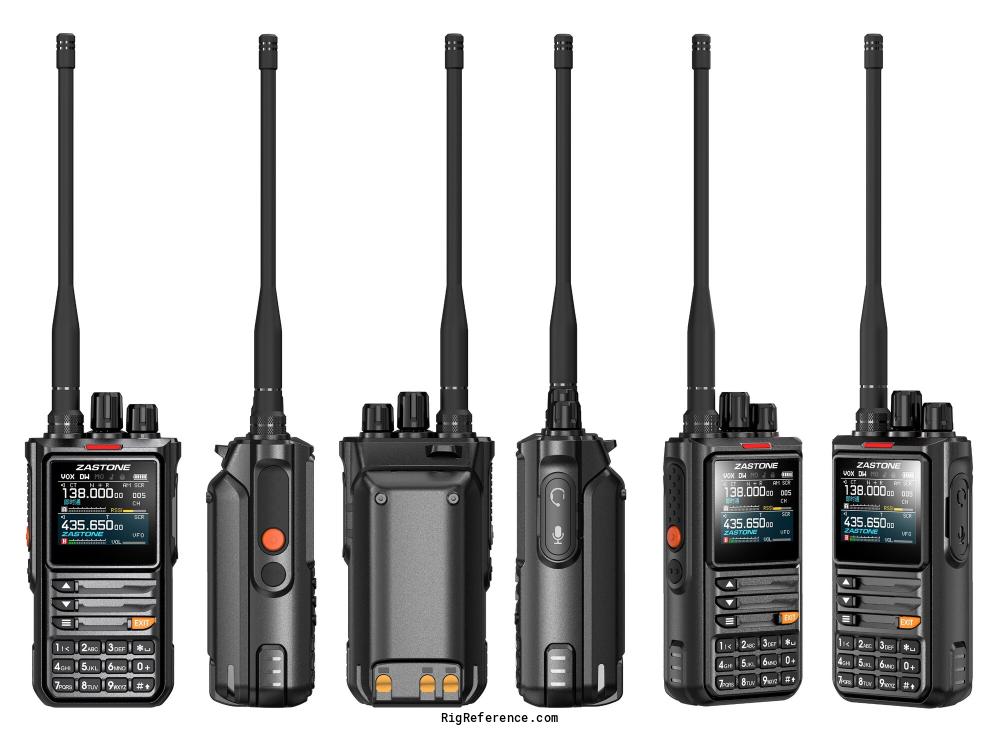

Another product image lists receive 136-174 / 400-519 MHz and 100-510 MHz
Dimensions 115 x 60 x 37.5 mm (without antenna)

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 136-174 / 400-480 MHz
Airband AM 108-136 MHz
FM broadcast 65-108 MHz
Modulations: AM FM N-FM W-FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-148 / 430-440 MHz
Modulations: FM N-FM
RF-output: 5 W

Connections

Antenna: -
Impedance: ?
Other: -

Electrical

Power requirements: 7.4 V, 4000 mAh
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 60 × 115 × 37 mm (2.36 × 4.53 × 1.46 in)
Weight: ?
Form factor: Handheld
Manufactured: Between 20xx and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: Dual-band handheld
Airband AM receive
Multi-band receive
APP programming
One-click frequency copy
Bluetooth
Intelligent noise reduction
USB-C fast charging
Accessories: -
RigReference ID: 6806
MPN: ZASTONE-M000008

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No manuals yet for the Zastone M8. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.

: Upload relevant documents

Reviews

Be the first to review the Zastone M8

No reviews yet. Share your experience and earn +10 reputation.

Write the first review

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Zastone M8. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Zastone M8 is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
