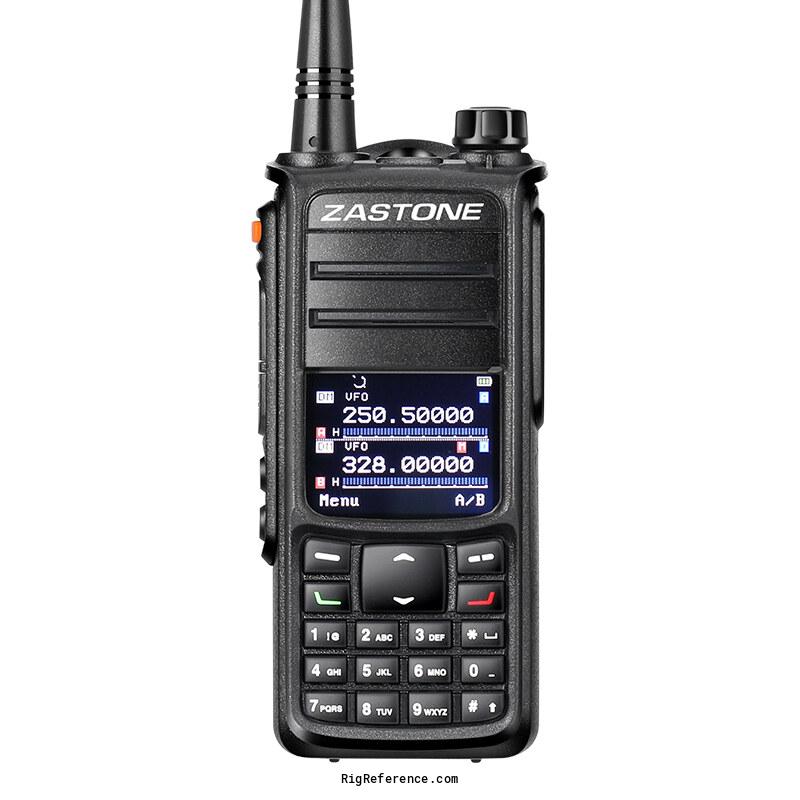

Zastone UV008
Amateur Handheld Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
Channel spacing: analog 25 / 12.5 kHz, digital 12.5 kHz
FM noise: 40 / 45 dB
Audio distortion: 5% or less
Operating temperature: -20 to +60 °C
Title mentions 136-520 MHz
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ±2.5 ppm
- Tuning steps
- ?
- Memories
- 1000 channels in bank(s)
Receiver
- RX-range
- 144-148 / 430-440 MHz
- Modulations
- AM FM N-FM DMR
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 / 430-440 MHz
- Modulations
- FM N-FM DMR
- RF-output
- 10 / 5 / 2 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.4 V DC, Li-ion 2500 mAh
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 57 × 131 × 36 mm (2.24 × 5.16 × 1.42 in)
- Weight
- 315 gr (11.1 oz) With antenna and battery
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Dual-band DMR / analog handheld
AMBE++ vocoder, ETSI TS 102 361
GPS
AES256 encryption
IP67
Dual PTT
Airband AM receive - Accessories
- -
- RigReference ID
- 6817
- MPN
- ZASTONE-UV000008
Manuals, diagrams and brochures
-
No manuals yet for the Zastone UV008. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.
- Upload relevant documents
Reviews
Be the first to review the Zastone UV008
No reviews yet. Share your experience and earn +10 reputation.
Write the first reviewNew and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Zastone UV008. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Zastone UV008 is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
