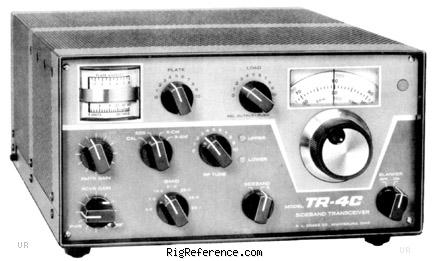

The Drake TR-4C is an HF amateur band transceiver covering 80 through 10 meters (some sources say 160-10 m) in seven 600 kHz ranges. Modes include USB, LSB, CW and AM. Input power is 300 watts PEP SSB, 260 watts AM/SSB. The accurate VFO provides 1 kHz analog dial. VOX or PTT may be selected. Other refinements include: CW side tone oscillator, crystal calibrator, VFO indicator light, CW semi break-in, VOX or PTT for AM or SSB, heavy irritated cadmium plated chassis, separate USB and LSB filters and 1.7:1 filter shape factor. The right panel has various jacks including: headphones, mic and key.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- Overall drift after warm-up: less than 100 Hz
- Tuning steps
- Continuous
- Memories
- ?
Receiver
- RX-range
- 80-10 m (no WARC)
- Modulations
- AM CW USB LSB
- Sensitivity
- <0,5 µV (10 dB S+N/N)
- Selectivity
- 2.1 kHz (-6 dB)
3.6 kHz (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- 1st: 9 MHz
- Image rejection
- > 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 80-10 m (no WARC)
- Modulations
- AM CW USB LSB
- RF-output
- SSB: 300 W PEP, AM: 260 W PEP (both input)

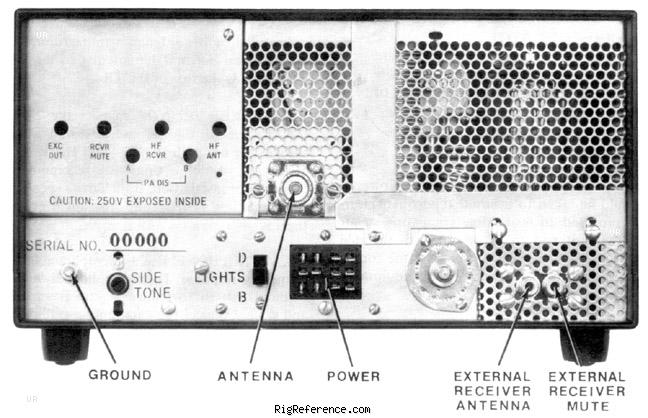

Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2603
- MPN
- DRAKE-TR-000004C
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake TR-4C. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Drake TR-4C in Good condition is around:
- USD 84 ~ USD 325
These estimates are based on the following prices:
