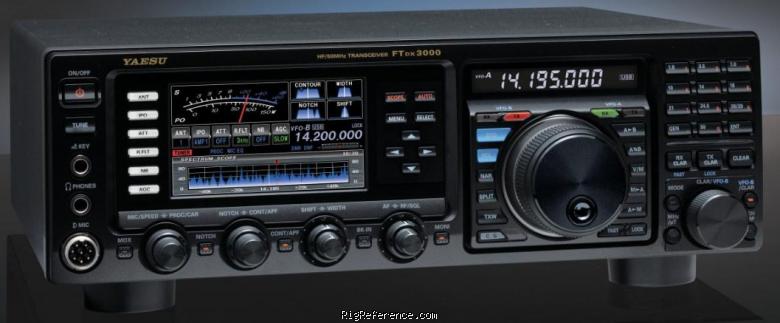

The Yaesu FTdx3000 is a HF / 50 MHz transceiver with a frequency range of 0.03-56 MHz (receive) and 1.8-54 MHz (transmit). It features a double conversion superheterodyne receiver system, Hi-perf crystal roofing filters, a 4.3 inch TFT screen, high speed spectrum scope, 32-bit IF-DSP, 9 MHz IF output, built-in auto-ATU, USB, CAT and µ-tune ports, and 3 × SO-239 connectors. The RF output is 5-100 W (AM: 2-25 W) with an audio output of 2.5 W into 4 Ohms. The transceiver weighs 10 kg and measures 115 × 365 × 312 mm. It requires 13.8 V DC ± 10% (Negative Ground). Current drain is 1.8-2.1 A (receive) and 23 A (transmit).
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m
- Frequency stability
- ±0.5 p.p.m. (after 1 minute @+14 °F to +122 °F [–10 °C to +50 °C])
- Tuning steps
- AM/CW/SSB: 1/10 Hz, FM: 0.1 kHz
- Memories
- ?
Receiver
- RX-range
- 0.03-56 MHz
- Modulations
- AM FM CW USB LSB RTTY
- Sensitivity
- SSB (BW: 2.4 kHz, 10 dB S+N/N)
4 µV (0.5 - 1.8 MHz) (IPO “ON”)
0.16 µV (1.8 - 30 MHz) (RF AMP 2 “ON”)
0.125 µV (50 - 54 MHz) (RF AMP 2 “ON”)
AM (BW: 6 kHz, 10 dB S+N/N, 30 % modulation @400 Hz)
28 µV (0.5 - 1.8 MHz) (IPO “ON”)
2 µV (1.8 - 30 MHz) (RF AMP 2 “ON”)
1 µV (50 - 54 MHz) (RF AMP 2 “ON”)
FM (BW: 15 kHz, 12 dB SINAD)
0.5 µV (28 - 30 MHz) (RF AMP 2 “ON”)
0.35 µV (50 - 54 MHz) (RF AMP 2 “ON”) - Selectivity
- CW/RTTY/PKT 0.5 kHz or better 750 Hz or less
SSB 2.4 kHz or better 3.6 kHz or less
AM 6 kHz or better 15 kHz or less
FM 15 kHz or better 25 kHz or less - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: Main: 9 MHz
2nd: Main: 30 kHz (SSB/CW), 24 kHz (FM/AM) - Image rejection
- HF: ≥ 70 dB 6m: ≥ 60 dB
- Audio output
- 2.5 W into 4 Ohms with 10% THD
Transmitter
- TX-range
- 1.8-54 MHz (amateur bands only)
- Modulations
- AM FM CW USB LSB RTTY
- RF-output
- 5-100 W (AM: 2-25 W)
Connections
- Antenna
- SO-239
- Impedance
- 50 (16.7-150 depending on band)Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ± 10% (Negative Ground)
- Current drain RX
- 1.8-2.1 A
- TX
- 23 A
Physical
- Dimensions (w×h×d)
- 365 × 115 × 312 mm (14.37 × 4.53 × 12.28 in)
- Weight
- 10.00 kg (22.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2012 and 20xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Hi-perf crystal roofing filters
4.3 inch TFT screen
High speed spectrum scope
32-bit IF-DSP
9 MHz IF output
Built-in auto-ATU
USB, CAT and µ-tune ports
3 × SO-239 connectors - Accessories
- -
- RigReference ID
- 5552
- MPN
- YAESU-FTDX003000
Manuals, diagrams and brochures
- Yaesu FTDx-3000 Leaflet PDF - 8.36 MB, submitted by RigReference
- Yaesu FTDx-3000 Operation Manual PDF - 32.53 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTdx3000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FTdx3000 in Good condition is around:
- EUR 1,075 ~ EUR 1,353
- USD 1,378 ~ USD 1,953
These estimates are based on the following prices:
