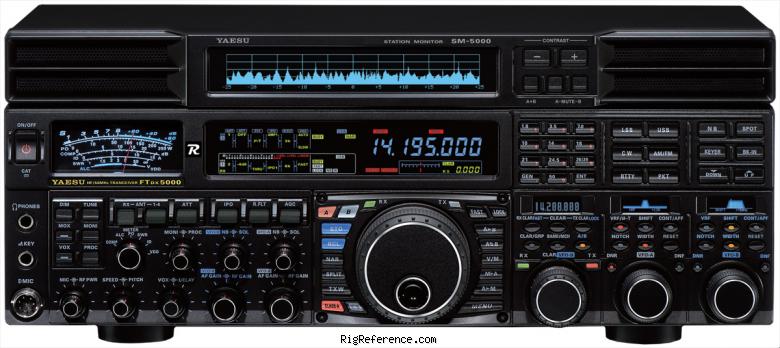

Yaesu FTdx5000MP

Desktop HF/VHF Transceiver

Specs Manuals (2) Reviews (1) Prices (2) Compare

Find Yaesu FTdx5000MP rigs and spare parts on eBay

Find the Yaesu FTdx5000MP on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

The Yaesu FTdx5000MP was announced in November 2009. The transceiver features an impressive 112 dB dynamic range and an IP3 (3rd Order Intercept Point) of +40 dBm (CW, 500 Hz). Newly designed roofing filters are selectable between 300 Hz, 600 Hz, 3 kHz, 6 kHz and 15 kHz. DSP features are powered by two 32-bit processors from Texas Instruments (TMS320C6727B) both running at 300 MHz. Each VFO has its own DSP processor. RF output comes from a pair of VRF150 FETS yielding 200 W.

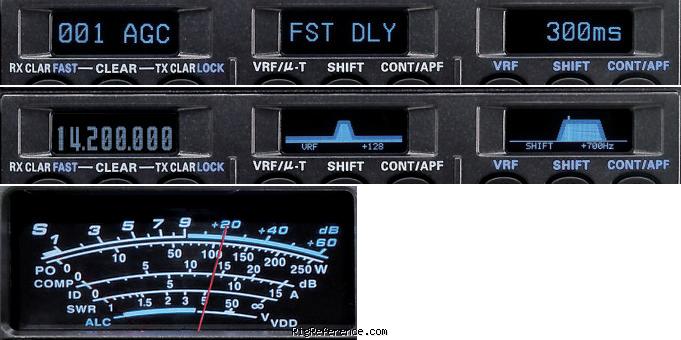

Besides the main display there is a large multi-functional analogue meter (same as in the FTdx-9000) and three sub-displays to indicate sub-frequency, graphical wave and menu functions.

The Station Monitor SM-5000 is included with the FTdx5000MP.

General characteristics

HAM bands: 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
Frequency stability: ±0.05 p.p.m. OCXO
Tuning steps: ?
Memories: ?

Receiver

RX-range: 0.03-60 MHz
Modulations: AM FM CW USB LSB RTTY
Sensitivity: ?
Selectivity: ?
Filters: 15 / 6 / 3 kHz, 600 / 300 Hz
Receiver system: Triple conversion Super-heterodyne + DSP
IF-frequencies: 1st: Main: 9 MHz, Sub: 40.455 MHz
2nd: Main: 30 kHz (SSB/CW), 24 kHz (FM/AM), Sub: 455 kHz
3rd: Main: 30 kHz (SSB/CW), 24 kHz (FM/AM)
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 10-160 m + WARC / 50-54 MHz
Modulations: AM FM CW USB LSB RTTY
RF-output: 200 W

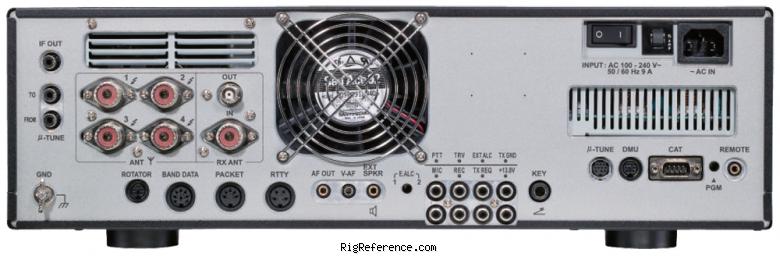

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 462 × 135 × 389 mm (18.19 × 5.31 × 15.31 in) (w/o knobs)
Weight: 21.00 kg (46.3 lbs) (SM-5000: 3 kg / 6.6 lbs)
Form factor: Base Station
Manufactured: Between 2009 and 201x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: DSP
Dual-RX
RS-232 computer interface (no USB!)
Accessories: -
RigReference ID: 4680
MPN: YAESU-FTDX005000MP
