Please note this model is also referred to as the FR-101S or FR-101 Standard.

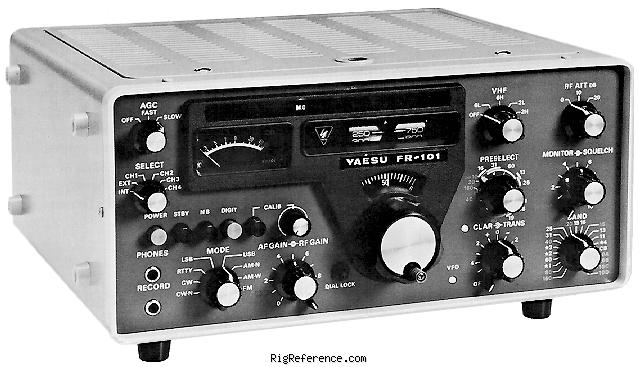

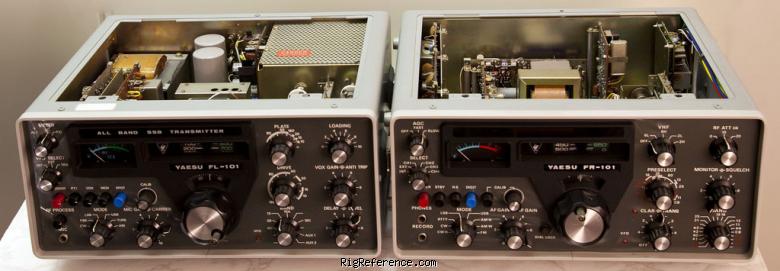

The Yaesu FR-101 is an amateur band receiver with provisions for multimode reception on twenty one 500 kHz amateur and shortwave bands from 160 to 10 meters. Two meters and six meter coverage is available by optional converters. Supplied frequency ranges include: 3.5-4, 7-7.5, 14-14.5, 21-21.5, 28-28.5, 28.5-29 MHz. It is designed to match the Yaesu FL-101 transmitter through easy wiring. The Yaesu FR-101 will also work with the Yaesu FT-101E / Sommerkamp FT-277 transceivers. Operation is from 100/110/117/200/220/234 VAC. Features include accurate analog dial, attenuator, crystal calibrator, noise blanker, AGC OFF/SLOW/FAST, RF gain and squelch.
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-160 m + 8 broadcast bands
- Modulations
- AM FM CW SSB RTTY
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 340 × 152 × 305 mm (13.39 × 5.98 × 12.01 in)
- Weight
- 9.00 kg (19.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4211
- MPN
- YAESU-FR-000101
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FR-101. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
