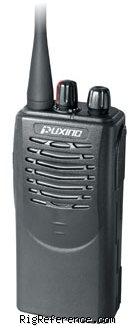

Puxing PX-628

General characteristics

HAM bands

2m  70cm

Frequency stability

±2.5 ppm

Tuning steps

?

Memories

16 channels in 1 bank(s)

Receiver

RX-range

136-150 MHz (VHF 1 version)
150-174 MHz (VHF 2 version)
350-370 MHz (UHF 1 version)
400-430 MHz (UHF 2 version)
450-470 MHz (UHF 3 version)
465-520 MHz (UHF 4 version)
470-490 MHz (UHF 5 version)

Modulations

N-FM   W-FM

Sensitivity

＜0.2µV (12dB SINAD)

Selectivity

25 or 12.5 kHz

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

≥ 60 dB

Audio output

?

Transmitter

TX-range

136-150 MHz (VHF 1 version)
150-174 MHz (VHF 2 version)
350-370 MHz (UHF 1 version)
400-430 MHz (UHF 2 version)
450-470 MHz (UHF 3 version)
465-520 MHz (UHF 4 version)
470-490 MHz (UHF 5 version)

Modulations

N-FM   W-FM

RF-output

VHF: 5W, UHF: 4W max

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

7.2V DC or internal Li-ion battery

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

55 × 100 × 32 mm (2.17 × 3.94 × 1.26 in) not including antenna

Weight

220 gr (7.8 oz) including battery

Form factor

Handheld

Manufactured

Between 200x and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS / DCS
PC programmable
Time-out Timer

Accessories

-

RigReference ID

4506

MPN

PUXING-PX-000628

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Puxing PX-628. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Puxing PX-628 is around:

• USD 42.00
