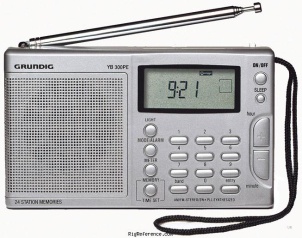

Grundig Yacht Boy 300 PE Handheld HF/VHF Receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

The Grundig YB-300 PE Professional Edition is another model in the Yacht Boy series. This model brings impressive features and performance to the under $100 price category.

Frequency range

RX-range
AM 520-1710 kHz
SW 2.3-7.8 / 9.1-26.1 MHz
FM 87-108 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
5 / 9 / 10 kHz
Filters
-

Receiver

Modulations
AM   FM   W-FM Stereo
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
Built-in ferrite bar + Built-in telescopic
Impedance
-

Electrical

Power requirements
4.5 V DC / 3 × AA cells
Current drain RX
400 mA
TX
-

Physical

Dimensions (w×h×d)
150 × 90 × 30 mm (5.91 × 3.54 × 1.18 in)
Weight
368 gr (13.0 oz)
Form factor
Handheld
Manufactured
Between 200x and 200x
MPN

Other features

Memories
24 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Direct keypad entry
Band button
Scanning
LCD display + backlight
Built-in clock
10-90 minute sleep time
DX-Local switch
Accessories
-
