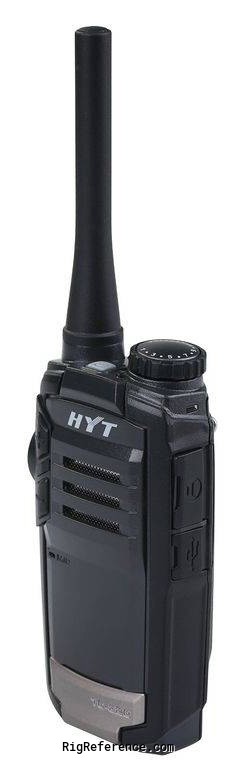

Hytera TC-320

Handheld VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Hytera TC-320 is a handheld VHF/UHF transceiver. It operates on the frequency range of 400-420 / 450-470 MHz for both transmit and receive. Frequency stability is ± 2.5 p.p.m. with tuning steps of 25 / 20 / 12.5 kHz. RF output power is selectable between 0.5 W and 2 W. Audio output is 400 mW at ≤5%. It features 1 memory bank with 16 channels. The TC-320 is rechargeable and programmable through a Mini USB interface. Dimensions are 48 × 100 × 27 mm and it weighs 146 gr.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ± 2.5 p.p.m.
Tuning steps: 25 / 20 / 12.5 kHz
Memories: 16 channels in 1 bank(s)

Receiver

RX-range: 400-420 / 450-470 MHz
Modulations: FM
Sensitivity: 0.25 / 0.28 μV
Selectivity: 55 dB
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 400 mW @ ≤5%

Transmitter

TX-range: 400-420 / 450-470 MHz
Modulations: FM
RF-output: 0.5 / 2 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 3.8V, 1700mAh (Li-ion)
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 100 × 48 × 27 mm (3.94 × 1.89 × 1.06 in)
Weight: 146 gr (5.2 oz)
Form factor: Handheld
Manufactured: Between 201x and 201x in China

Other features

Usage: Commercial / Land mobile communication
Features + options: Chargeable and Programmable through Mini USB Interface
Accessories: -
RigReference ID: 5638
MPN: HYTERA-TC-000320
