The Yaesu FTV-650 six meter transverter converts a 10/11 m rig into a 6 m rig. The input frequency between 28 and 30 MHz is converted to either 50-52 or 52-54 MHz in SSB or AM modes. The Yaesu FTV-650 was designed to work together with the Yaesu FT-101 / Yaesu FT-201 transceiver or Yaesu FL-101 / Yaesu FR-101 transmitter-receiver combination.

General characteristics

HAM bands
11m (CB)  6m  10m
Frequency stability
?
Tuning steps
?

Receiver

RX-range
28-30 MHz
Modulations
AM   SSB
Sensitivity
0.5 µV @ 10 dB S/N for SSB
1.0 µV @ 10 dB S/N for AM
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
28-30 MHz
Modulations
AM   SSB
RF-Output
50 W PEP

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
11-pin connector from transceiver
Current drain RX
?
TX
?

Physical

Manufactured
Between 199x and 199x in Japan
Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station

Other features

Memories
None
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
YAESU-FTV-000650

Manuals, diagrams and brochures

Yaesu FTV-650 Circuit diagram submitted by RigReference
Yaesu FTV-650 Instructions submitted by RigReference

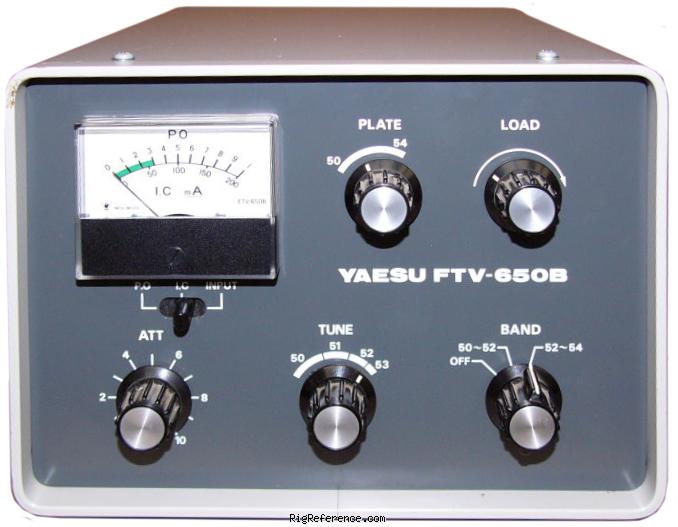

Yaesu FTV-650 picture submitted by IZ5IUY

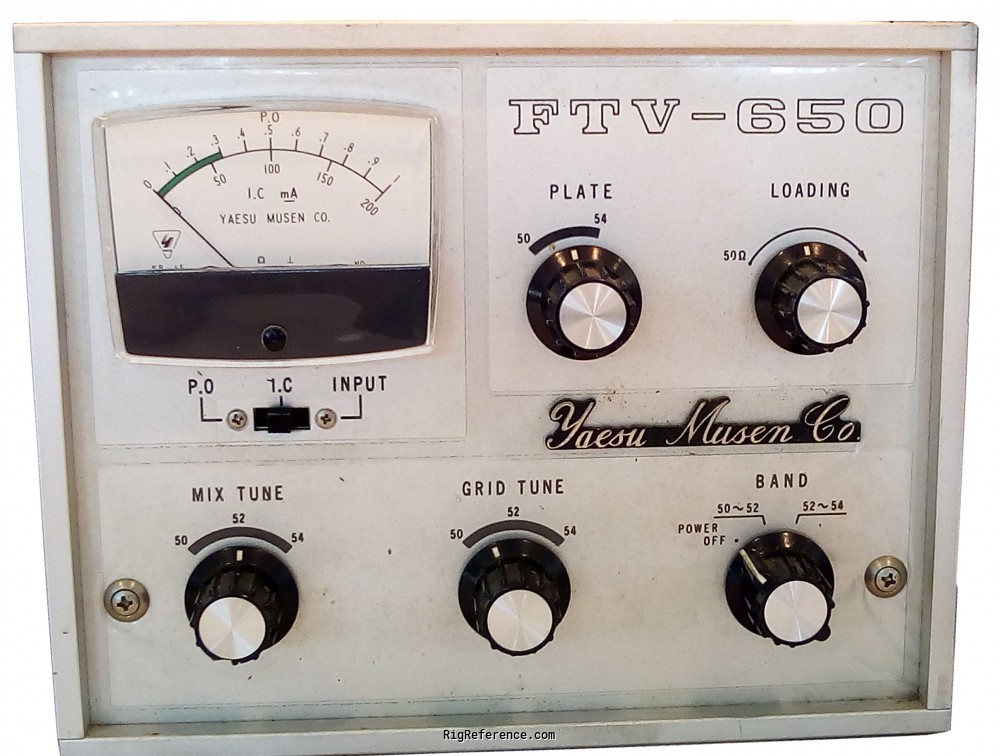

Yaesu Musen FTV-650 front view photo submitted by IZ5IUY
Yaesu Musen FTV-650 rear view photo submitted by IZ5IUY

Upload relevant documents

Show other documents.
Find the Yaesu FTV-650 user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTV-650. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FTV-650 is around:

  • USD 50.00 ~ USD 30.00
Year Historic price Condition Submitted by
2019 USD 51.00 Used / Fair eBay
2019 USD 31.00 Used / Fair eBay
