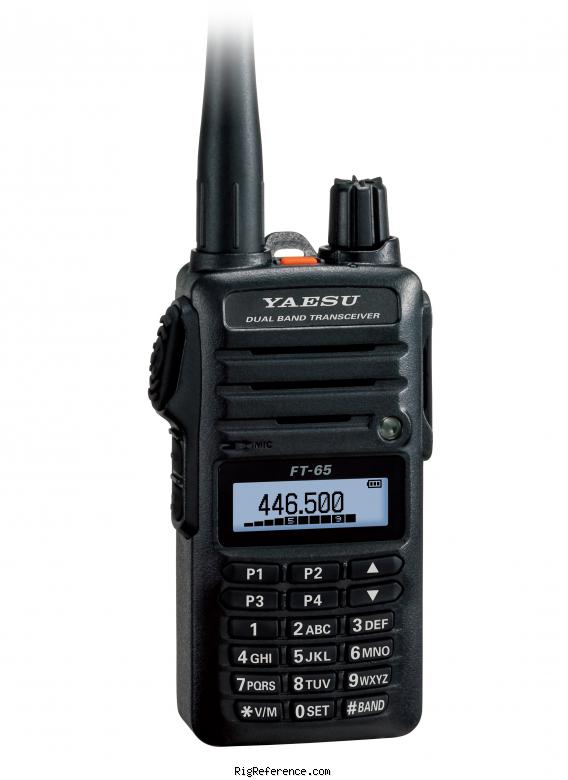

The Yaesu FT-65E/R comes in 2 variants: the FT-65E for the European market and the FT-65R for the North-American market. The US version has support for 10 NOAA weather channels.

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
Memories
200 channels in 1 bank(s)

Receiver

RX-range
144-146 / 430-440 MHz (FT-65E)
144-148 / 430-450 MHz (FT-65R)
Modulations
FM   N-FM   W-FM
Sensitivity
140-150 MHz: 0.2 µV (12 dB SINAD)
420-470 MHz: 0.2 µV (12 dB SINAD)
Selectivity
12 kHz (-6 dB), 35 kHz (-60 dB)
Filters
?
Receiver system
Direct conversion
IF-frequencies
?
Image rejection
?
Audio output
800 mW @ 10% THD into 16 Ω

Transmitter

TX-range
65-108 / 136-174 / 400-480 MHz
Modulations
FM   N-FM
RF-output
0.5 / 2 / 5 W

Connections

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
7.4 V DC (battery pack) or 6-9 V DC external
Current drain RX
18-205 mA
TX
1.7 A max

Physical

Dimensions (w×h×d)
52 × 104 × 31 mm (2.05 × 4.09 × 1.22 in)
Weight
260 gr (9.2 oz) inclusing antenna and SBR-25Li battery pack
Form factor
Handheld
Manufactured
Between 2017 and 201x

Other features

Usage
Amateur / Ham radio operators
Features + options
Alpha tags
CTCSS/PL and DCS
DTMF
ARTS
Accessories
-
RigReference ID
6140
MPN
YAESU-FT-000065E/R

Manuals, diagrams and brochures

FT-60R SM PDF - 6.39 MB, submitted by Berend

Upload relevant documents

Reviews & stories

Rating Title Submitted
Good 4 years ago by Luke

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-65E/R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-65E/R is around:

  • EUR 73.00
  • USD 264.00 ~ USD 81.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2023 USD 265.33 Used / Good H22
2020 USD 84.95 New / Mint Luke
2018 EUR 90.00 New / Mint Stefan Andreas
