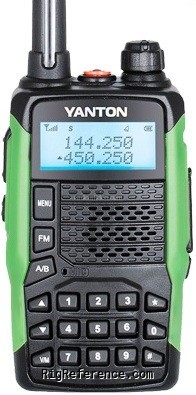

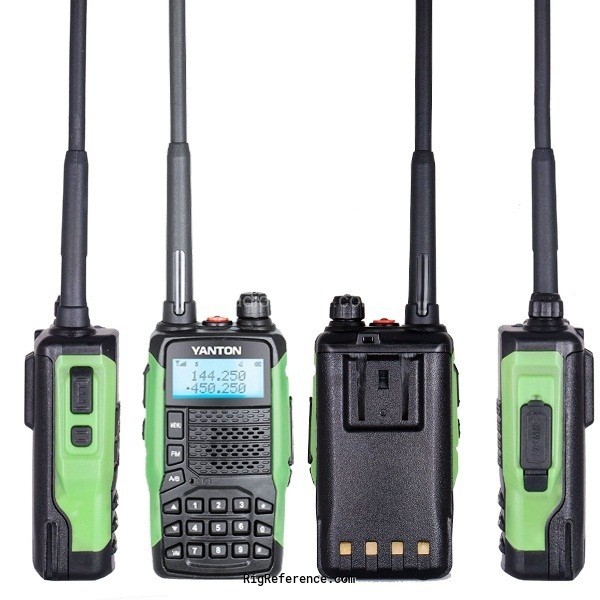

The Yanton GT-03 is a handheld transceiver. The frequency range for reception is 88-108 / 136-174 / 350-390 / 400-480 MHz and for transmission is 136-174 / 350-390 / 400-480 MHz. Frequency stability is ±2.5 p.p.m. The radio features filters of 12.5 / 25 kHz. RF output is 3 W and audio output is 500 mW. It has 2 memory banks with a capacity of 256 channels. The GT-03 requires 7.4 V DC power supply. Dimensions are 60 × 122 × 38 mm. Current drain in receive mode is 100 mA max and in transmit mode 1 A max. The weight is 220 gr.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- ?
- Memories
- 256 channels in 2 bank(s)
Receiver
- RX-range
- 88-108 / 136-174 / 350-390 / 400-480 MHz
- Modulations
- FM N-FM
- Sensitivity
- ≤ 0.20 µV (12 dB SINAD)
- Selectivity
- ?
- Filters
- 12.5 / 25 kHz
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 500 mW
Transmitter
- TX-range
- 136-174 / 350-390 / 400-480 MHz
- Modulations
- FM N-FM
- RF-output
- 3 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.4 V DC
- Current drain RX
- 100 mA max
- TX
- 1 A max
Physical
- Dimensions (w×h×d)
- 122 × 60 × 38 mm (4.80 × 2.36 × 1.50 in)
- Weight
- 220 gr (7.8 oz)
- Form factor
- Handheld
- Manufactured
- Between 2017 and 201x in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Keypad
Emergency alert
FM radio with 25 stations memory
CTCSS/DCS scanning
PC-programmable - Accessories
- -
- RigReference ID
- 6339
- MPN
- YANTON-GT-000003
