Yanton T-M2 Ultra-compact 3W VHF/UHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Supports simplex of co-frequency or alien operation. Curious to see what that exactly is :)

Frequency range

RX-range
136-174 / 400-480 MHz
TX-range
136-174 / 400-480 MHz
HAM bands
2m  70cm
Stability
± 2.5 p.p.m.
Tuning steps
-
Filters
-

Receiver

Modulations
FM
Sensitivity
≤ 0.20 µV (12 dB SINAD)
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
500 mW

Transmitter

Modulations
FM
RF-Output
1 / 3 W

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
3.7 V DC, 1000 mAh Li-ion Battery
Current drain RX
100 mA max
TX
1 A max

Physical

Dimensions (w×h×d)
85 × 38 × 25 mm (3.35 × 1.50 × 0.98 in)
Weight
105 gr (3.7 oz)
Form factor
Handheld
Manufactured
Between 2017 and 201x in China
MPN

Other features

Memories
16 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
PC Software Programmable
VOX Function
CTCSS / DCS

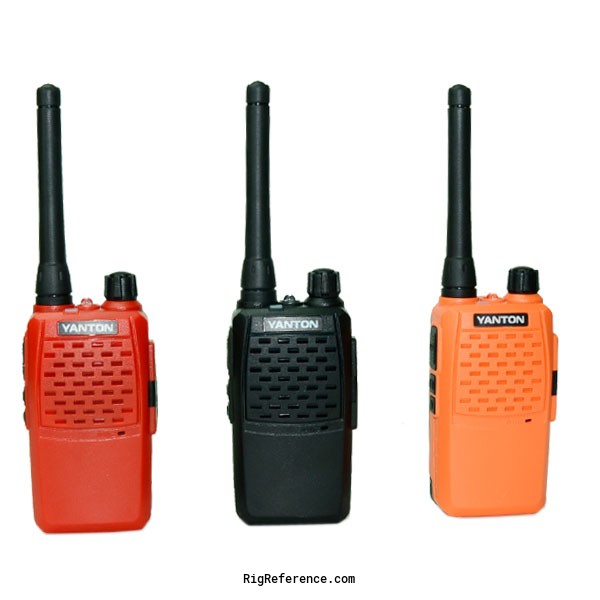

Multiple colors
Accessories
-
