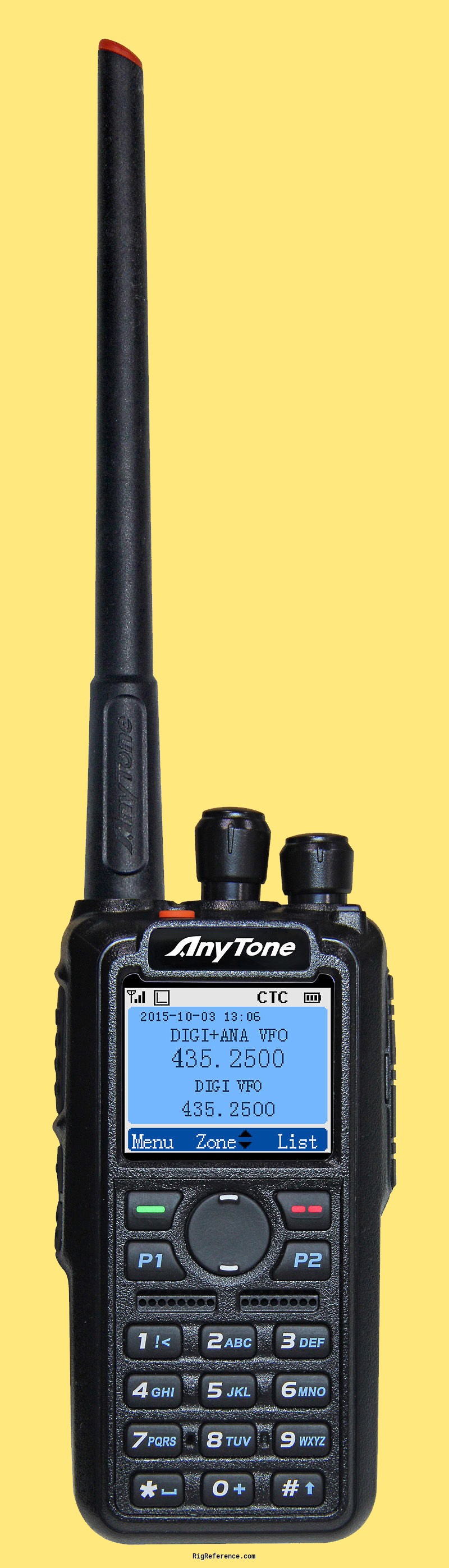

The Anytone AT-D868UV is a handheld transceiver. Frequency range is 136-174 / 400-480 MHz. RF output is 6 / 5 / 2.5 / 1 W. Audio output is 1 W at 5% distortion / 16 ohms. Features include DMR APRS reporting, 1.7" TFT display, 10000 talk groups and 150000 contacts, auto-sense DMR or FM reception, and GPS. Dimensions are 129 × 61 × 39 mm. Weight is 282 gr with a 2100 mAh Li-Ion battery and antenna.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 136-174 / 400-480 MHz
- Modulations
- FM DMR
- Sensitivity
- FM: 0.25 µV (12 dB SINAD)
NFM: 0.35 µV (12 dB SINAD)
DMR: 0.3 µV (BER 5%) - Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ≥ 60 dB
- Audio output
- 1 W at 5% distortion / 16 ohms
Transmitter
- TX-range
- 136-174 / 400-480 MHz
- Modulations
- FM DMR
- RF-output
- 6 / 5 / 2.5 / 1 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.4 V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 61 × 129 × 39 mm (2.40 × 5.08 × 1.54 in)
- Weight
- 282 gr (10.0 oz) with 2100 mAh Li-Ion battery and antenna
- Form factor
- Handheld
- Manufactured
- Between 2017 and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DMR APRS reporting
1.7" TFT display
10000 talk groups and 150000 contacts
Auto-sense DMR or FM reception
GPS - Accessories
- -
- RigReference ID
- 6418
- MPN
- ANYTONE-AT-D000868UV
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Anytone AT-D868UV. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Anytone AT-D868UV in Good condition is around:
- USD 109
These estimates are based on the following prices:
