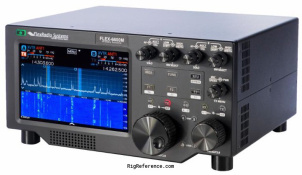

The FlexRadio FLEX-6600M model is the same as the FlexRadio FLEX-6600 except for the front controls and screen This model has four Independent High Performance Receivers.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- 0.5 p.p.m. TCXO
- Tuning steps
- 1 Hz
- Memories
- ?
Receiver
- RX-range
- 30 kHz – 54 MHz
- Modulations
- AM AM-sync FM N-FM CW USB LSB RTTY DV
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- SDR, Direct Digital Sampling
- IF-frequencies
- ?
- Image rejection
- ≥ 100 dB
- Audio output
- 1W diagnostic speaker
Transmitter
- TX-range
- 160-6 m
- Modulations
- AM AM-sync FM N-FM CW USB LSB RTTY DV
- RF-output
- 1-100W SSB, CW, FM, RTTY, DIGITAL; 1-25W AM
Connections
- Antenna
- BNC + SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC ± 15%
- Current drain RX
- 2.0 A
- TX
- 23 A
Physical
- Dimensions (w×h×d)
- 350 × 171 × 337 mm (13.78 × 6.73 × 13.27 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 2017 and 20xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 8" (20.3cm) touchscreen, 1920×1200 pixels)
HDMI connector for external display
SDR (Software Defined Radio)
Ethernet
Integrated Antenna Tuner
USB 2.0
Optional:
* GPS Disciplined Oscillator; 5x10-12 over 24 hours
* MARS/CAP Coverage Filter Bank
* ThumbDV module for D-Star mode - Accessories
- -
- RigReference ID
- 6208
- MPN
- FLEXRADIO-FLEX-006600M
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used FlexRadio FLEX-6600M. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the FlexRadio FLEX-6600M is around:
- USD 166 ~ USD 308
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
