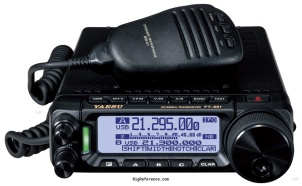

The Yaesu FT-891 is a compact HF transceiver designed for mobile and desktop use and delivers up to 100 W. High-end 32-Bit floating point DSP (Digital Signal Processing) helps provide cleaner, clearer signals, enhances operating experience and reducing overall operator fatigue. On the rear is a SO-239 antenna jack and 13.8 V DC socket. An external PSU is required.

The specified receive current of 2 A is an absolute worst case scenario. Real-world tests have shown the figure to be more in the range of 0.9-1.1 amps. Transmit current is also seldom going above 15 A, even when outputting the full 100 W.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Frequency stability
TCXO ± 0.5 p.p.m.
Tuning steps
CW/SSB: 10 Hz, AM/FM/W-FM: 0.1 kHz
Memories
200 channels in 1 bank(s)

Receiver

RX-range
0.3-56 MHz
Modulations
AM   FM   CW   USB   LSB
Sensitivity
SSB/CW (10 dB S/N): 0.158 µV (1.8-30 MHz), 0.125 µV (50-54 MHz)
AM (10 dB S/N): 5 µV (0.5-1.8 MHz), 1.6 µV (1.8-30 MHz), 1.25 µV (50-54 MHz)
FM (12 dB SINAD): 0.35 µV (29 / 50-54 MHz)
Selectivity
SSB/CW: 2.4 kHz (-6 dB), 3.6 kHz (-60 dB)
CW-N: 500 Hz (-6 dB), 750 Hz (-60 dB)
AM: 6 kHz (-6 dB), 15 kHz (-60 dB)
FM: 12 kHz (-6 dB), 30 kHz (-60 dB)
Filters
3 kHz roofing filter
Receiver system
Double / Triple Conversion Superheterodyne
IF-frequencies
1st: 69.450 MHz (SSB/CW/AM/FM)
2nd: 450 kHz
3rd: 24 kHz
Image rejection
70 dB (HF/6 m), 60 dB (2/70 cm)
Audio output
2.5 W (@4 Ohms, 10% THD or less)

Transmitter

TX-range
10-160m + WARC + 60m / 6m
Modulations
AM   FM   CW   USB   LSB
RF-output
FM/SSB/CW: 100 W, AM: 25 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC ±15%
Current drain RX
1.1 A (2 A max)
TX
15 A (23 A max)

Physical

Dimensions (w×h×d)
155 × 52 × 218 mm (6.10 × 2.05 × 8.58 in)
Weight
1.90 kg (4.2 lbs)
Form factor
Mobile
Manufactured
Between 2017 and 20xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6287
MPN
YAESU-FT-000891

Manuals, diagrams and brochures

Yaesu FT-891 Operating Manual PDF - 19.71 MB, submitted by RigReference
Yeasu FT-891 Advance Manual PDF - 9.31 MB, submitted by Necromonster
Yeasu FT-891 brochure PDF - 1.57 MB, submitted by Necromonster
Yeasu FT-891 Quick Manual PDF - 332.7 kB, submitted by Necromonster
Yeasu FT-891 Cat Reference Book PDF - 527.0 kB, submitted by Necromonster

Upload relevant documents

Reviews & stories

Rating Title Submitted
Excellent for limited space shack. 1 year ago by Richard Manns

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-891. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-891 is around:

  • USD 430.00 ~ USD 475.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2023 USD 600.00 Used / Good Richard Manns
2021 USD 625.00 New / Mint Jim
2019 USD 600.00 New / Mint nd3q
2018 USD 579.00 New / Mint Necromonster
2017 USD 599.00 New / Mint universal-radio
