General characteristics

HAM bands
2m  70cm
Frequency stability
± 2.5 p.p.m.
Tuning steps
2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 50 kHz
Memories
128 channels in 1 bank(s)

Receiver

RX-range
136-174 / 400-480 MHz
Modulations
FM   N-FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
136-174 / 400-480 MHz
Modulations
FM   N-FM
RF-output
10 W

Connections

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
7.4 V DC
Current drain RX
75-380 mA
TX
1.4 A max

Physical

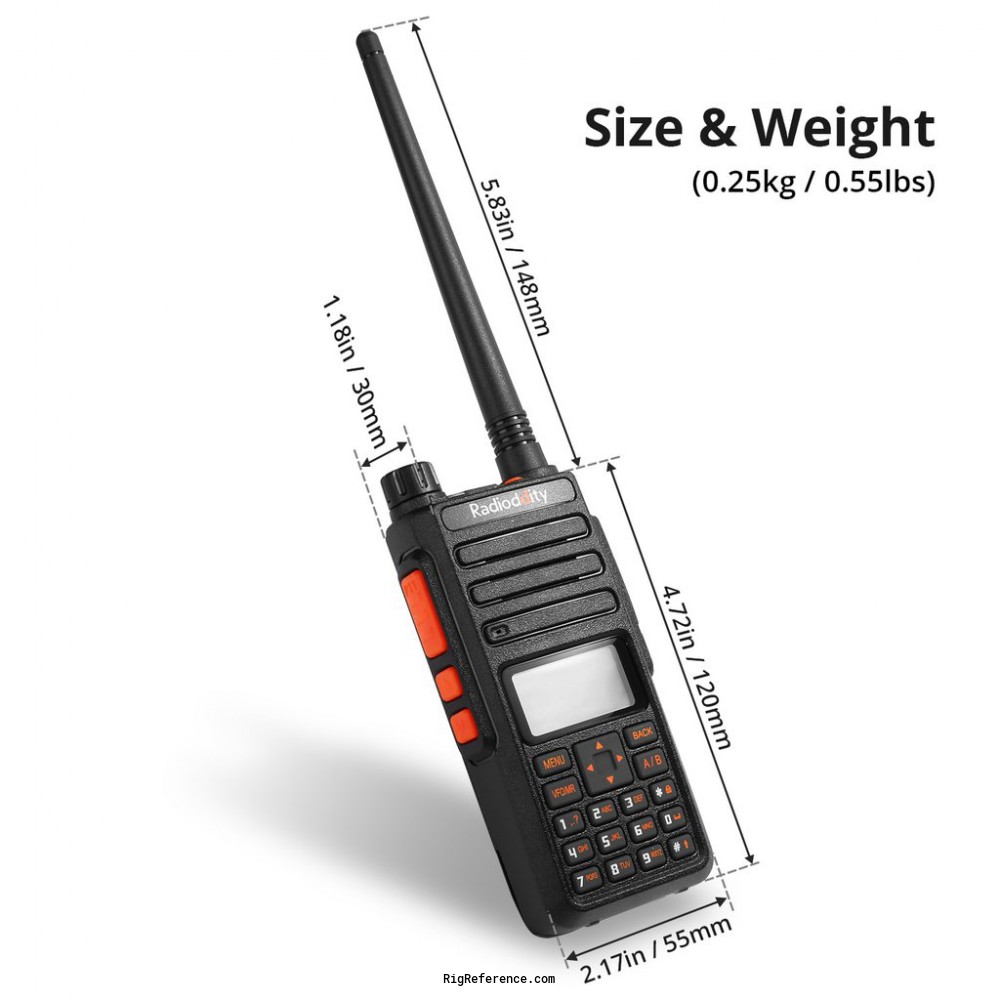

Dimensions (w×h×d)
120 × 55 × 30 mm (4.72 × 2.17 × 1.18 in)
Weight
300 gr (10.6 oz)
Form factor
Handheld
Manufactured
Between 202x and 202x

Other features

Usage
Amateur / Ham radio operators
Features + options
VOX
Voice Prompt
Power Saving
Beep Prompt
Busy Lockout
128 Channels
Tone Scanning
Keypad Auto Lock
Tx Over Time Setting
Backlight Time Setting
Wide/Narrow Bandwidth

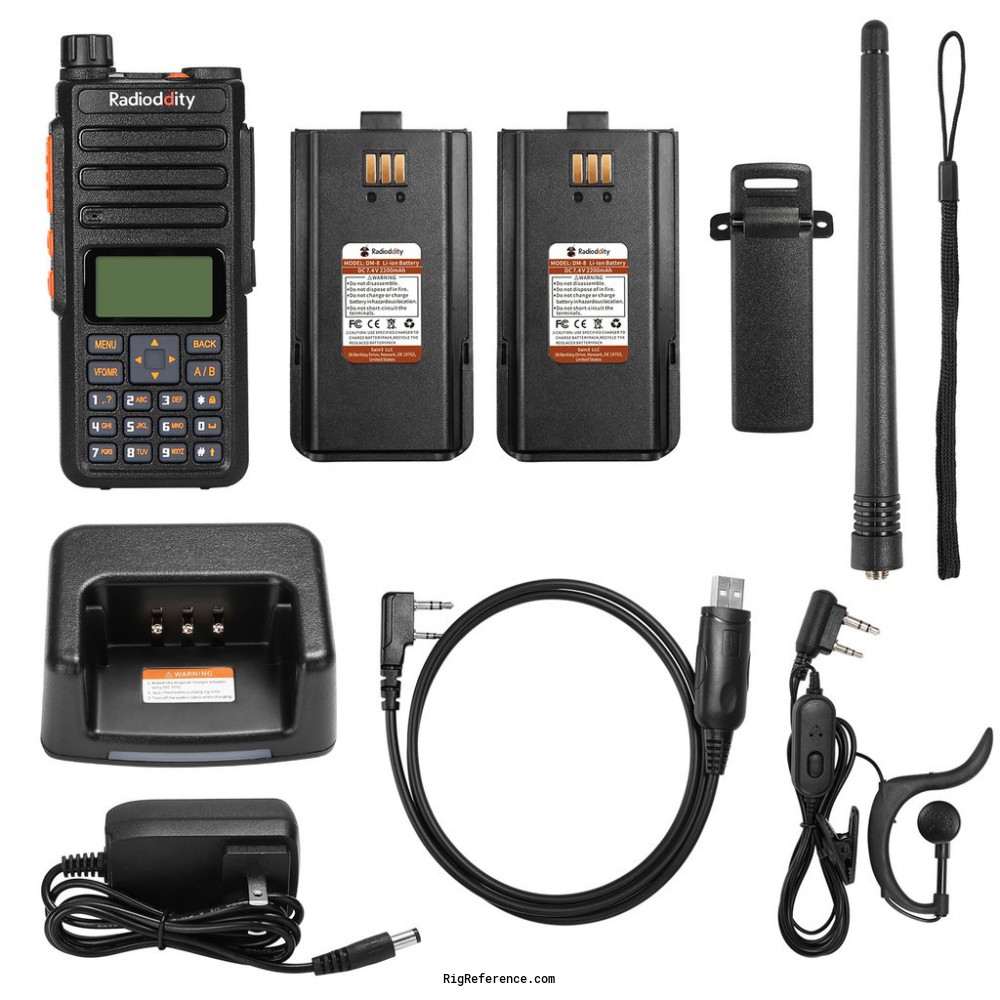

Accessories
-
RigReference ID
6507
MPN
RADIODDITY-GA-000510

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radioddity GA-510. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Radioddity GA-510 is around:

  • USD 58.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 58.57 New / Mint RigReference
