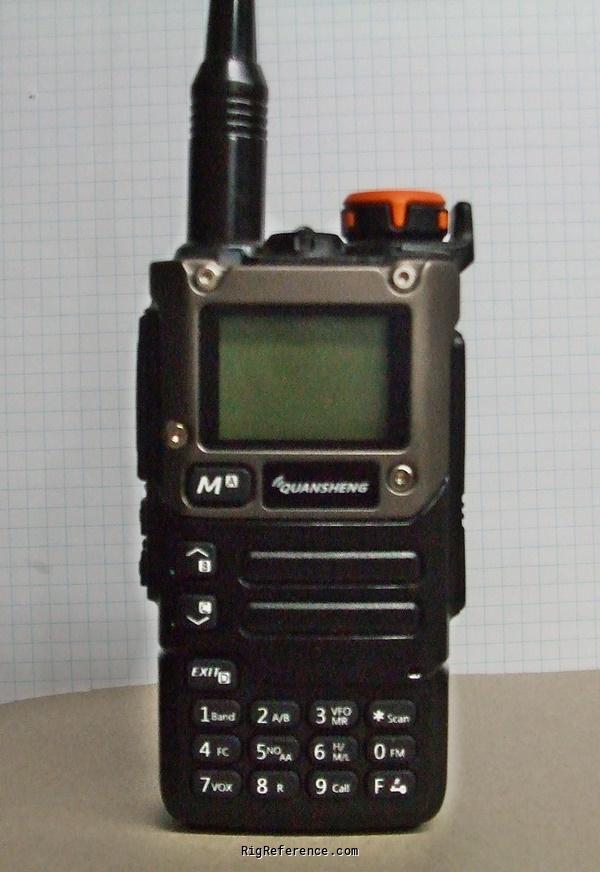

Quansheng UV-K5

Handheld Amateur Transceiver

Specs Manuals (1) Reviews (0) Prices (1) Compare

Dual band, dual frequency display handheld transceiver.
Like other Chinese handhelds similar to this radio, they are quite popular given their performance and low price, making them the ideal entry-level transceiver for new Hams.
What sets this radio apart from other Chinese handhelds, is that there are a number of firmware upgrades that can be performed to unlock extended receiving capabilities, including SSB.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ± 1 p.p.m.
Tuning steps: 2.5K/5K/6.25K/10K/12.5K/25K
Memories: 200 channels in 1 bank(s)

Receiver

RX-range: 50 -76 /108-500 MHz
Modulations: AM FM W-FM
Sensitivity: ≥ 0.5 ųV (12 dB SINAD)
Selectivity: ?
Filters: Nil
Receiver system: Dual conversion superheterodyne
IF-frequencies: ?
Image rejection: 60/70 dB
Audio output: 0.5W

Transmitter

TX-range: FCC version 144-148 MHz /420-450 MHz
CE version 144-146 MHz / 430-440 MHz
Normal version 136 -174 MHz /400-470 MHz
Modulations: FM
RF-output: 5W

Connections

Antenna: SMA
Impedance: 50Ω
Other: USB-C connector for charging.
Standard microphone/speaker connectors on side.

Electrical

Power requirements: DC 7.2V 1600mAh
Current drain RX: ?
TX: 1.5A

Physical

Dimensions (w×h×d): 60 × 115 × 37.5 mm (2.36 × 4.53 × 1.48 in) excluding antenna
Weight: 234 gr (8.3 oz) including battery
Form factor: Handheld
Manufactured: Between 2024 and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS
VOX
FM Radio receiver built in.
10 NOAA channels.
PC Programmable.
LED Flashlight.
DTMF
Accessories: -
RigReference ID: 6664
MPN: QUANSHENG-UV-K000005

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Quansheng UV K5 Manual PDF - 1.79 MB, submitted by Mike

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Quansheng UV-K5. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Quansheng UV-K5 in Good condition is around:

AUD 68

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2025	AUD 90.00	New / Mint	Mike
