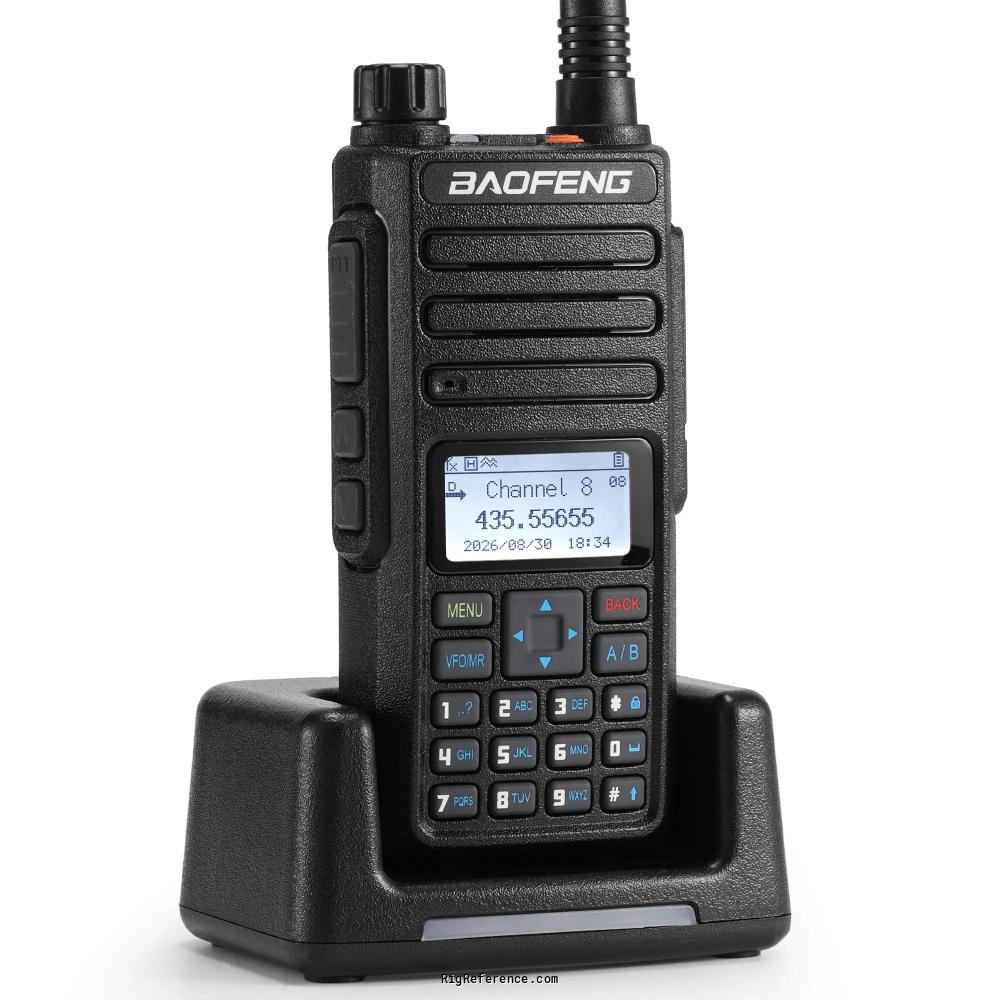

Baofeng DM-1801 Pro

General characteristics

HAM bands

2m  70cm

Frequency stability

±2.5 ppm

Tuning steps

?

Memories

4000 channels in 250 bank(s)

Receiver

RX-range

136-174 / 400-470 MHz
AM airband 108-136 MHz, FM broadcast 65-108 MHz
NOAA weather

Modulations

AM   FM   N-FM   W-FM   DMR

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

136-174 / 400-470 MHz (US)
144-146 / 430-440 MHz (EU)

Modulations

FM   N-FM   DMR

RF-output

7 / 4 / 1 W

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

7.4 V DC, Li-ion battery 2200 mAh

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

61 × 133 × 34 mm (2.40 × 5.24 × 1.34 in)

Weight

269 gr (9.5 oz)

Form factor

Handheld

Manufactured

Between 2026 and 20xx

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual band, dual mode analog FM / DMR Tier II dual time slot
4000 channels in 250 zones
800 contacts + 50,000 CSV contacts
Up to 10 hours DMR voice recording (WAV export via CPS)
Automatic repeater roaming
NOAA weather receive with 1050 Hz alert
One-key frequency copy
5 customisable keys
Man-down alert
Kenwood 2-pin accessory jack

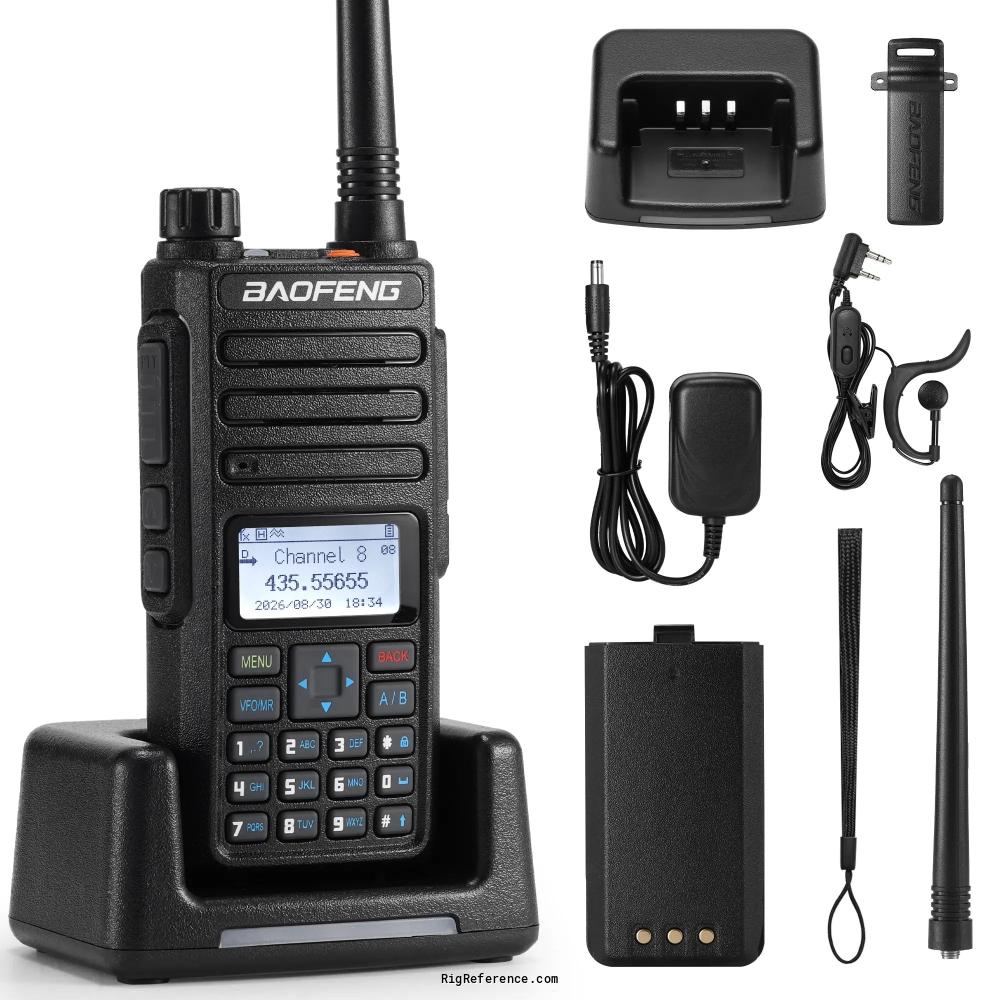

Accessories

-

RigReference ID

6833

MPN

BAOFENG-DM-001801-PRO

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Baofeng DM-1801 Pro. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Baofeng DM-1801 Pro. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Baofeng DM-1801 Pro in Good condition is around:

• USD 50

Price History Chart

These estimates are based on the following prices:
