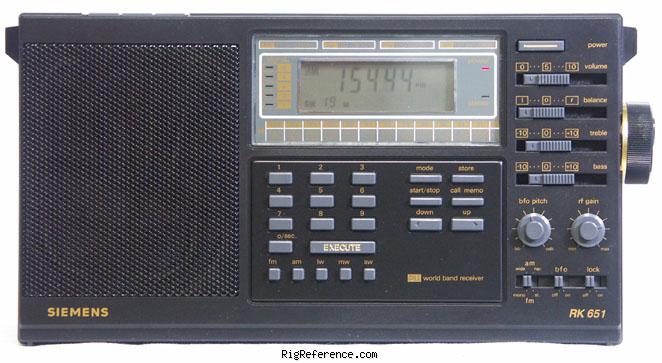

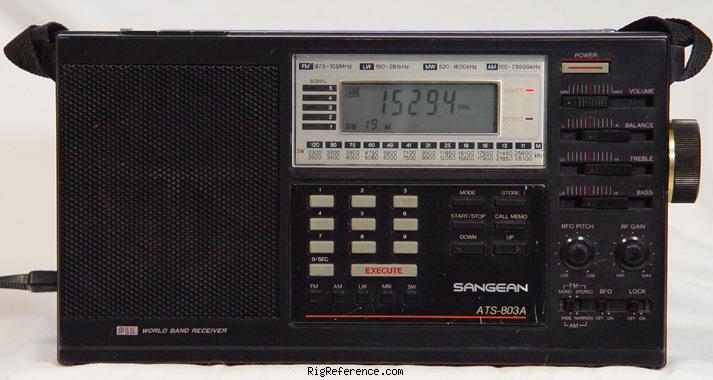

The Sangean ATS-803A was also sold as the Siemens RK-651 in Europe.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
9 / 10 kHz
Memories
15 channels in 1 bank(s)

Receiver

RX-range
0.150-30 / 87.5-108 MHz
Modulations
AM   W-FM Stereo   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
-
Impedance
?
Other
-

Electrical

Power requirements
9V DC (6R20/D + 2R6/AA)
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
293 × 160 × 60 mm (11.54 × 6.30 × 2.36 in)
Weight
1.75 kg (3.9 lbs)
Form factor
Handheld
Manufactured
Between 19xx and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
Wide/narrow selectivity. Clock. RF gain
Accessories
-
RigReference ID
3942
MPN
SANGEAN-ATS-000803A

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Great HF portable for its time, and still is! 8 years ago by rreh917

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sangean ATS-803A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Sangean ATS-803A is around:

  • USD 4.00 ~ USD 18.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2013 USD 59.95 Used / Good universal-radio
1989 USD 250.00 New / Mint rreh917
