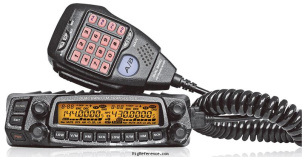

The Anytone AT-5888UV is a mobile dual-band VHF/UHF transceiver. It covers 118-134 / 134-174 / 200-260 / 350-400 / 400-520 MHz in receive and 134-174 / 400-490MHz in transmit. The frequency stability is ± 2.5 p.p.m. It has an image rejection of ≥ 60 dB. RF output power is selectable at 55 / 35 / 10 / 5 W. Audio output is 2 W @ 10% THD. It features 1 memory bank with 758 channels and requires 13.8 V DC (±15%). Dimensions are 40 × 139 × 212 mm. The transceiver weighs 1.14 kg.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 2.5 p.p.m.
- Tuning steps
- 5 / 10 / 12.5 / 15 / 20 / 25 / 50 kHz
- Memories
- 758 channels in 1 bank(s)
Receiver
- RX-range
- 118-134 / 134-174 / 200-260 / 350-400 / 400-520 MHz
- Modulations
- AM FM
- Sensitivity
- W-FM ≤ 0.25 μV (12 dB SINAD)
N-FM ≤ 0.35 μV (12 dB SINAD) - Selectivity
- 12.5 / 25 kHz
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ≥ 60 dB
- Audio output
- 2 W @ 10% THD
Transmitter
- TX-range
- 134-174 / 400-490MHz
- Modulations
- FM
- RF-output
- 55 / 35 / 10 / 5 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC (±15%)
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 139 × 40 × 212 mm (5.47 × 1.57 × 8.35 in)
- Weight
- 1.14 kg (2.5 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2013 and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6075
- MPN
- ANYTONE-AT-005888UV
Manuals, diagrams and brochures
- Anytone AT-5888VU English Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Anytone AT-5888UV. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Anytone AT-5888UV in Good condition is around:
- USD 165 ~ USD 170
These estimates are based on the following prices:
