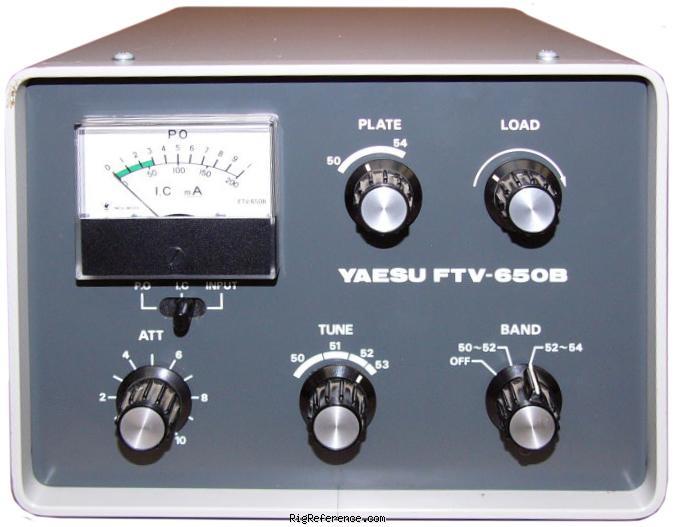

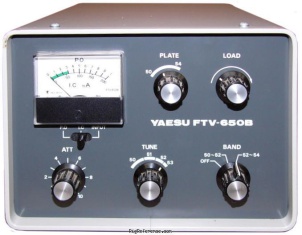

The Yaesu FTV-650 six meter transverter converts a 10/11 m rig into a 6 m rig. The input frequency between 28 and 30 MHz is converted to either 50-52 or 52-54 MHz in SSB or AM modes. The Yaesu FTV-650 was designed to work together with the Yaesu FT-101 / Yaesu FT-201 transceiver or Yaesu FL-101 / Yaesu FR-101 transmitter-receiver combination.
This B-version is a hybrid which still uses a tube for 12V filament. The mostly solid-state design makes it very suitable for mobile operation.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 28-30 MHz
- Modulations
- AM SSB
- Sensitivity
- 0.5 µV @ 10 dB S/N for SSB
1.0 µV @ 10 dB S/N for AM - Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 28-30 MHz
- Modulations
- AM SSB
- RF-output
- 50 W PEP
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 11-pin connector from transceiver
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 199x and 199x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5662
- MPN
- YAESU-FTV-000650B
