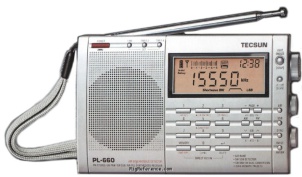

Tecsun PL-660

Handheld HF/VHF Receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Tecsun PL-660 rigs and spare parts on eBay Find the Tecsun PL-660 on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
100-519 / 522-1620 kHz / 1.7-30 / 87-108 MHz
TX-range
-
HAM bands
?
Stability
?
Tuning steps
9 / 10 / 100 kHz
Filters
?

Receiver

Modulations
AM   AM-sync   FM   W-FM Stereo   SSB
Sensitivity
3 µV
Selectivity
?
Receiver system
Double conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
1 W

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
Built-in telescopic
Impedance
50Ω

Electrical

Power requirements
6V DC (4 × R6 batteries)
Current drain RX
300 mA
TX
-

Physical

Dimensions (w×h×d)
188 × 117 × 30 mm (7.40 × 4.61 × 1.18 in)
Weight
450 gr (15.9 oz)
Form factor
Handheld
Manufactured
Between 20xx and 20xx
MPN
TECSUN-PL-000660

Other features

Memories
600 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Tecsun PL-660 user manuals on eBay #ad

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Tecsun PL-660. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Tecsun PL-660 is around:

  • USD 90.00
Year Historic price Condition Submitted by
2013 USD 109.95 Used / Good universal-radio
2012 USD 110.00 New / Mint Rahob
